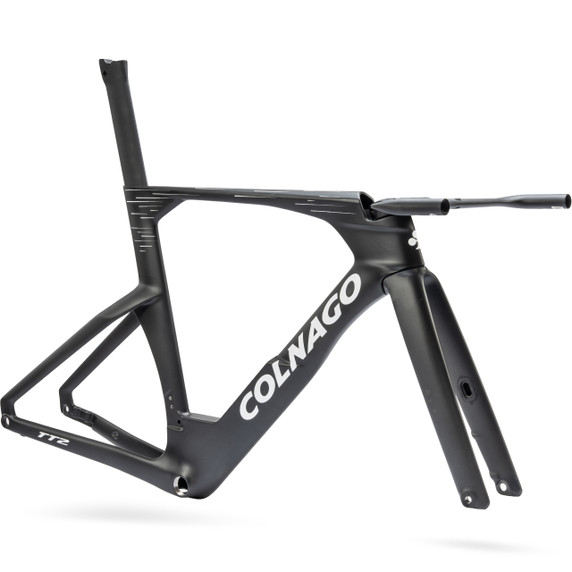

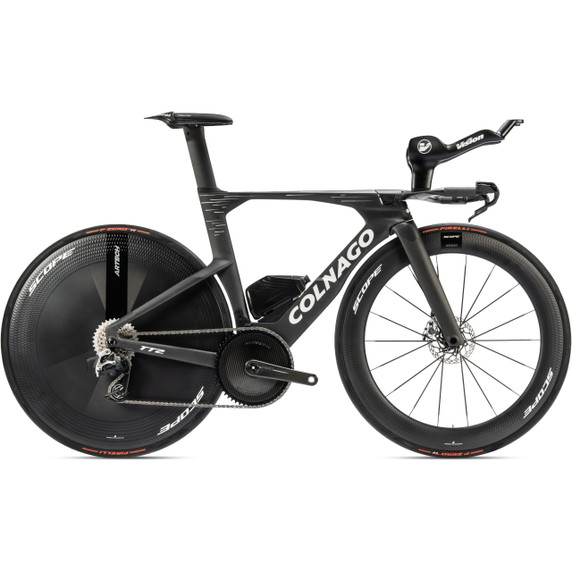

Colnago TT2 Time Trial Frameset TBDF

Built for a new era of Time Trial Racing.

For elite athletes, performance is no longer defined only by aerodynamics, but by a balance of weight, handling, acceleration, rider positioning and stability - especially on courses mixing high speeds with technical and climbing sections.

FEATURES

• 550 grams lighter: The TT2 frame kit is approx. 550 grams lighter than the previous TT1 - a reduction achieved while preserving the same stiffness, strength and aerodynamic efficiency.
• A renewed front-end: The TT2 introduces a narrower integrated cockpit, a redesigned fork and an exceptionally slim head tube profile - all developed to minimise drag through frontal exposure.
• Full integrated project: The TT2 was developed as a complete performance platform, extending beyond the frame itself to include every component that influences aerodynamic efficiency.
• Colnago Aero Bottle System: The TT2 introduces a new Colnago Aero Bottle System, developed alongside the frame to maximise aerodynamic efficiency through a fully integrated, UCI-compliant design featuring Fidlock® magnetic fastening technology.

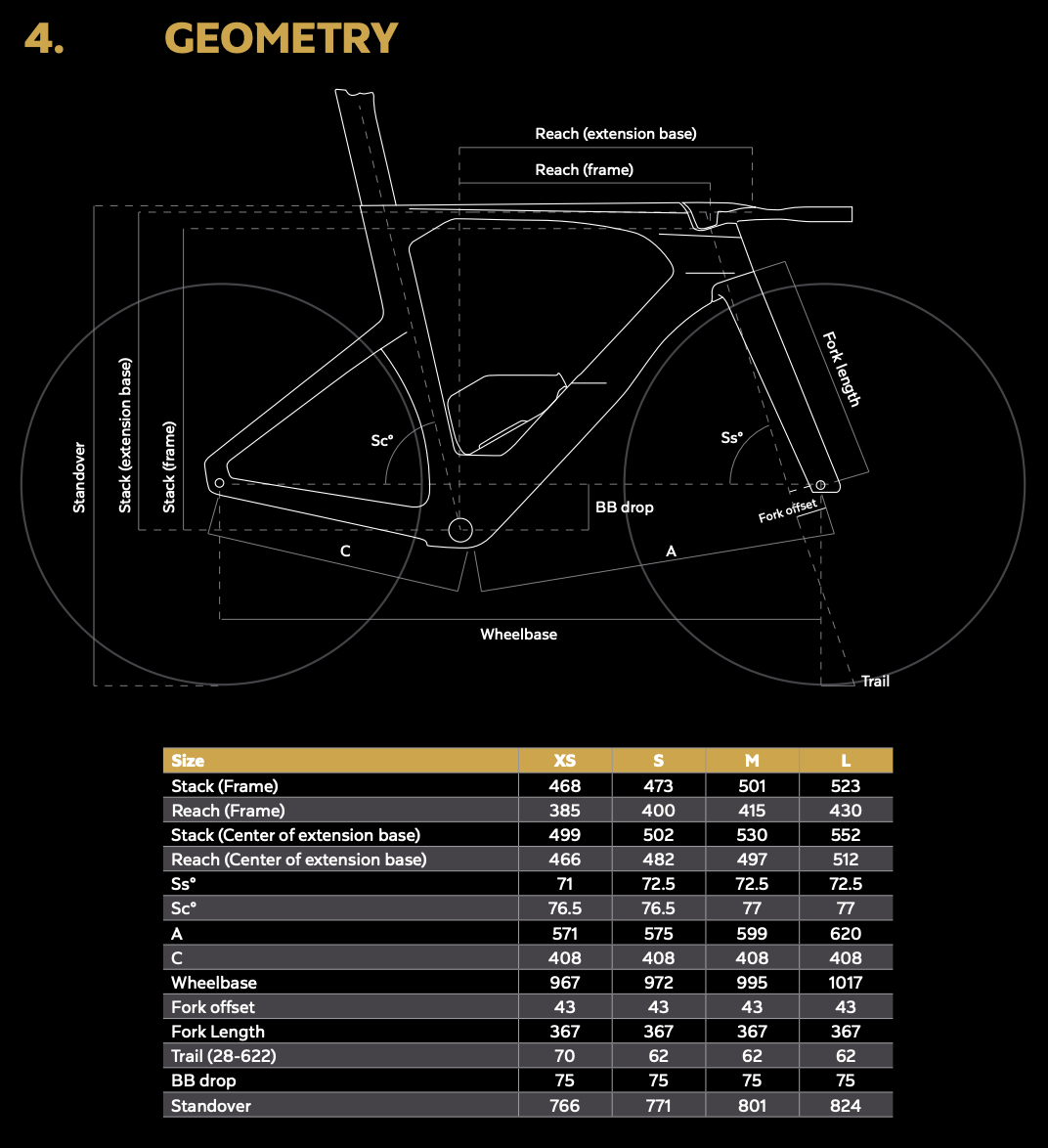

• A wider sizing range: The TT2 introduces a completely revised geometry developed to improve rider fit, comfort and positional flexibility.

SPECIFICATIONS

• Details
  • Series: TT Series
  • Model: TT2
• Frame kit
  • Frame (material): Monocoque carbon.
  • Fork (material, section notes): Carbon fork with 25 mm steerer tube for disc brakes, integrated cables.
  • Headset: 30x39x6.5 upper and lower bearings; 36x45° - included in the kit
• Seatpost
  • Seatpost: Colnago Aero seatpost. 0 mm offset, +22.5 mm offset available as a spare part.
  • Seatpost clamp: Colnago Custom wedge seatpost clamp + M8x16 headless screw
• Through axles
  • Rear: 12 x 142 mm UDH standard
  • Front: 12 x 100 mm
• Handlebar:
  • Colnago TT2 time trial handlebar (360mm C-C) + stem cover included. Time trial extensions not included.
• Bottle cage:
  • Colnago aerodynamic bottle cage included. Colnago aerodynamic water bottle for TT2 included - both featuring FIDLOCK® technology.
• Bottom bracket:
  • BSA 68mm
• Brake caliper:
  • Flat Mount disc (rear), Flat Mount (front)
• Chainstay Height (Flat Mount):
  • 20 mm
• Maximum tyre size:
  • 30 mm with 4 mm clearance

*Specifications are subject to change based on component availability during assembly.

This bike will be shipped un-built in the manufacturer supplied packaging. We strongly recommend that this bike be assembled by a qualified bike mechanic or bike shop.

Any assembly undertaken without professional assistance, and subsequent damage from faulty assembly, is at the customers risk.
