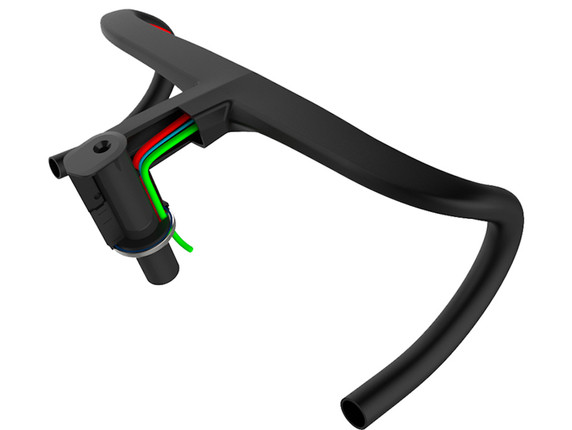

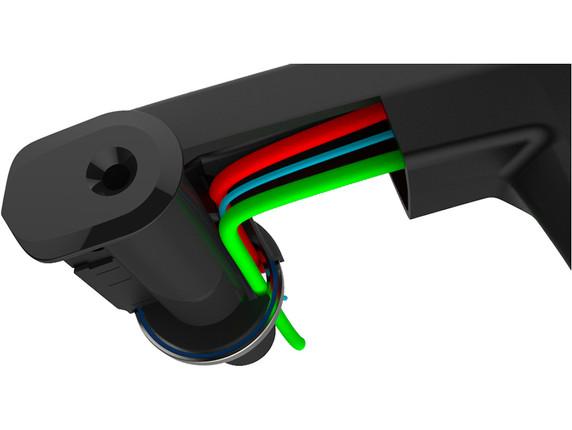

The new DCR (deda internal cable routing) system allows the full integration of the cables inside the handlebar.

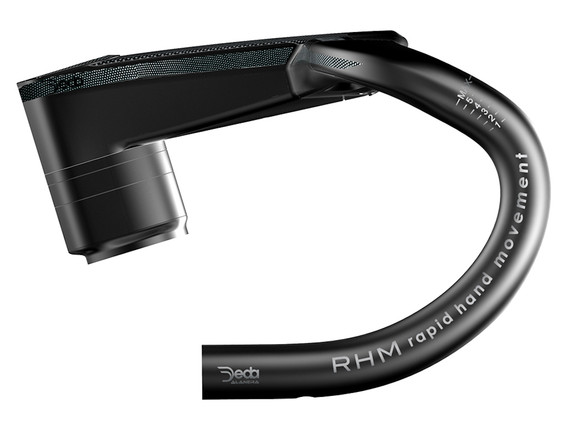

Developed to be aero, the optmised design of stem and handlebar guarantees a perfect integration with the bike. Alanera features the full internal cable routing when mounted on d-shape forks. The rhm shape guarantees a very compact reach and drop for a fast change from the shifters to the drops.
Specific aero spacers with an innovative mounting system complete the design of the handlebar, resulting more integrated with the frame. A special aero topcap and a Garminbike mount complete the accessories line. Easy fixing system for di2 & eps unit under the stem. Available in 11 different size combinations.
Specifications
| Shape | RHM - Rapid Hand Movement |
|---|---|
| Material | UD full carbon construction |
| Fork steerer | 1 1/8" (28.6mm) |
| Profondita | 75 mm |
| Drop | 130 mm |
| handlebar sizes (outside to outside) cm | 13042, 10042, 9042, 11042, 11044, 12042, 12044, 12046, 13044, 13046 |
| Note about sizes | Stem length (mm) x handlebar width (cm) |
| Accessories | Garmin bike mount for 500&800 series, aero headset spacers and topcap. |
| Handlebar weight | 350 g |

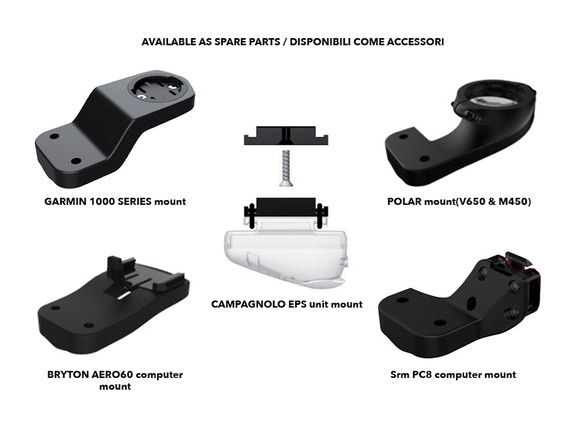

| Other accessories | Available as accessories the mount for Garmin1000, Bryton (Aero60), Polar (V650&M450) and SMR PC8. Campagnolo eps unit mount available as spare part. |
| Note | Compatible with full internal cable routing (2 brake cables & electric shifting wire) |
| Price Match | Contact Us Here |
|---|---|
| Easy Returns | Info Here |
| Payment Options | Interest FREE Options Over $30 |
| Fast Shipping | Check Rates Here |
| Pushys ID | 156127 |
