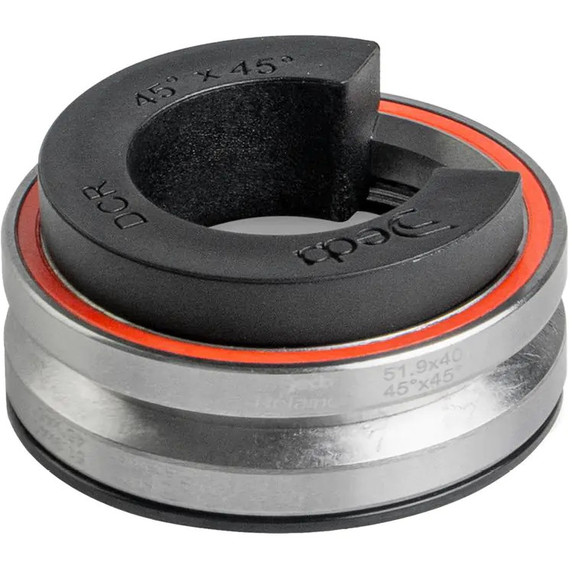

Integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci, Alanera and Superbox stem. It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1-1/8" - 1.5"), but requires a 52mm (1.5") upper headset bearing od.
The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The DCR topcover for Alanera & Superbox (cod. HDALADCRTC56) and Vinci (HDVCNTC56) is not included in the kit, but available to purchase separately.

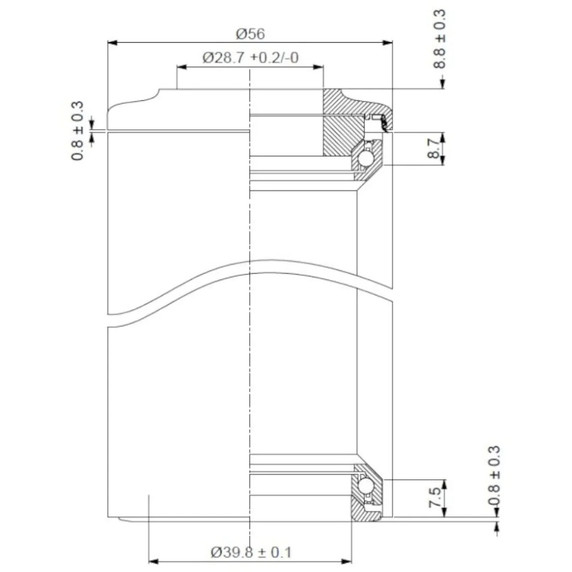

• Headset model: integrated 1.5" - 1.5"
• Bearings type: angular contact bearing; chrome steel
• Bearings size: upper 51,9x40x8mm; lower 51,9x40x8mm
• Contact angle:
• Upper: 45°x45°
• Lower: 36°x45°
• Headtube: 56.0mm
• Fork steerer: tapered 1 1/8" (28.6mm) - 1.5" (38.10mm)
• Top cover: 56mm
• Crown race: 39.8mm aluminium
• Stack height: 9.6mm (8.8 + 0.8)
• Weight: 80g
