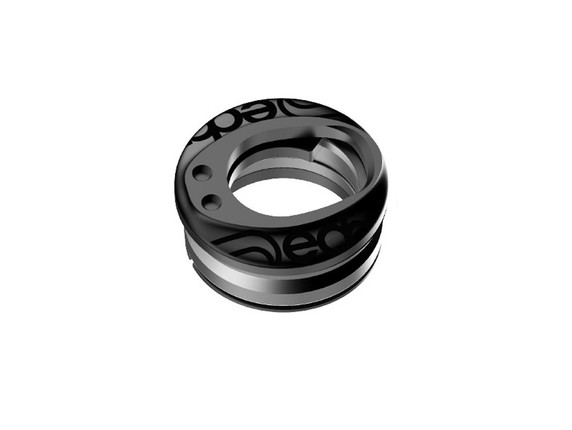

New integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci stem.
It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1-1/8" - 1.5"), But requires a 52mm (1.5") upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork.
A dedicated topcover for alanera is available as accessory.
Specifications
| Headset Model | integrated 1.5" - 1.5" |
|---|---|
| Bearings | Angular contact bearing chrome steel |
| Bearing size | inferior 51,9x40x8mm, superior 51,9x40x8mm |
| Contact angle | 45 x 45, 45 x 45 - Mounting "O" |
| Headtube | 56.0mm |
| Fork steerer | 1.5" (38.10mm), conical 1 1/8" (28.60mm) |
| Top cover | 56mm |
| Crown race | 39.8mm Alloy |
| Stack Height | 9.6mm (8.8 + 0.8) |
| Weight | 76g |
| Note | compatible with 56mm frame headtube designed for 1.5" bearings (upper & lower). The DCR topcover for alanera is included with the handlebar kit. |
