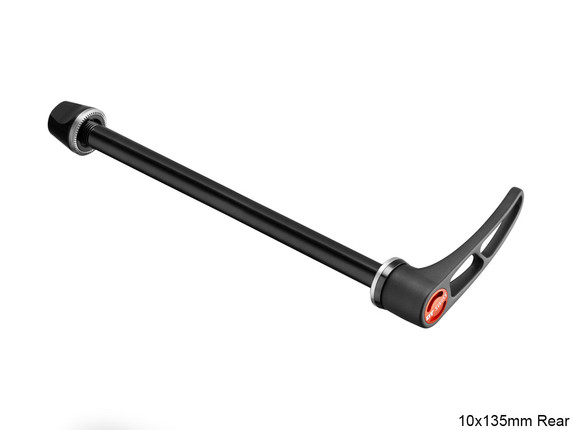

The mounting solution for Thru Bolt front and rear wheels.
With an axle diameter of 9 mm in the front and 10 mm in the rear, the thru bolt system is a special kind of axle mounting for bikes. The DT Swiss thru bolt system is compatible with standard quick-release dropouts but requires matching hubs. The stronger wheel connection results in a greater stiffness.
Technologies
RWS -Initially designed as an improvement of the quick release, the RWS has grown into a range of high end, high performance wheel mounting systems that suit anyone from the core roadie to the enduro racer.
Specifications
| 9x100mm - Front | 10x135mm - Rear | |
|---|---|---|
| Net Weight | 57 g | 70 g |
| Lever Material | Aluminum | Aluminum |
| Range of Use and Type | RWS MTB | RWS MTB |
| Axle System | 9 mm Thru Bolt | 10 m Thru Bolt |
| Built-In Dimension | 100mm | 135 mm |
| Length [L] | 115 | 152 |
| Thread Length [G] | 20 | 22 |
| Thread | M9 X 1 | M10 X 1 |
