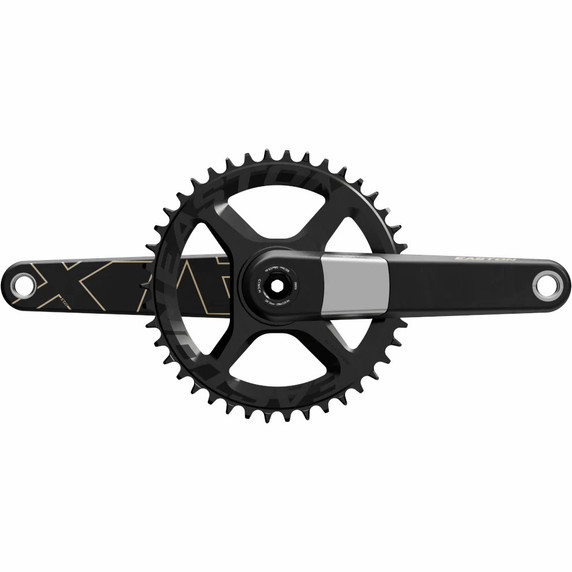

The lightest crank Easton has ever made and strongest on the market, delivering uncompromised all-road performance.
EC90 ALX crank arms, inserts and spindle were engineered from the ground up to eliminate every possible gram of material, and address rider pain points. We maximized power transfer, minimized weight, increased heel clearance, and incorporated unscuffable protection. Lighter, stronger, and built to perform wherever the road takes you.
All-Road Wear Plate
Shaped and placed through rider sampling and imagery overlap to locate crank body areas most impacted by heel rub and long-term wear, delivering unique functionality for all-road riders.
Many Lengths Made Light
Carbon fiber layup is bonded with ultralight inserts through a proprietary process and resin system, achieving infallible durability and strongest in test. Lite-spline (LS) spindles and redesigned arms shave weight by reducing bulk. Five arm length options round it out to ensure this crank is fit for all.
Crankarm Specs
- Crank Lengths: 160mm, 165mm, 170mm, 172.5mm and 175mm
- 2x Ring Configuration: 46/36T, 47/32T, 46/30T AX Gravel Rings
- 1x Ring Configurations:
- 38T, 40T, 42T, 44T (SHI 12S)
- 36T, 38T, 40T, 42T, 44T (FLT Top 12S)
- Material: Unidirectional carbon fiber body, stainless steel wear plate. Aluminum pedal and spindle inserts.
- Weight:
- 329g – Crankset with LS Standard spindle only, 170mm length.
- 419g – Crankset with LS Standard spindle, 170mm length, SHI 12 40T 1x chainring.
- Q-Factor: 150mm (with LS Standard Spindle)
- Spindle Diameter: 30mm (CINCH)
- Max System Weight: 121kg
- Spindle Compatibility:
- LS Standard Spindle – Shimano Road, SRAM 1x and 2x drivetrains.
- LS Wide Spindle – Shimano Gravel drivetrains (GRX/Cues).
Spindle Specs
LS Standard Spindle – EC90 ALX cranks with Shimano Road, SRAM 1x and 2x drivetrains.
LS Wide Spindle – EC90 ALX cranks with Shimano Gravel drivetrains (GRX/Cues).
