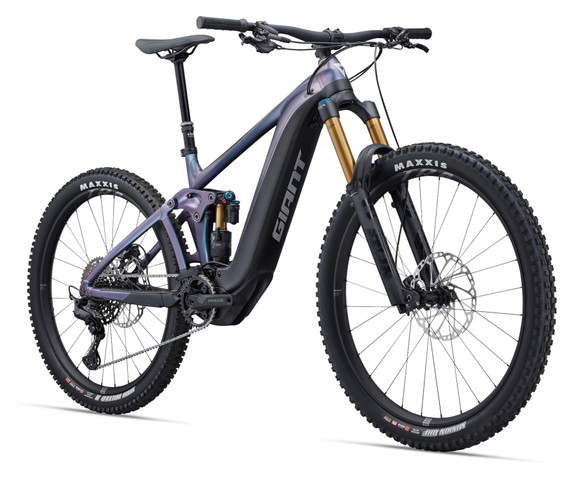

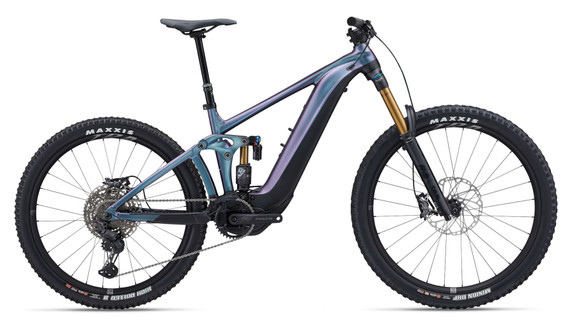

Every trail, every steep climb, every thrilling descent. Nothing is out of bounds with the Reign E+. This proven trail ripper gives you the power to enjoy the best parts of the ride again and again.
Trail technology

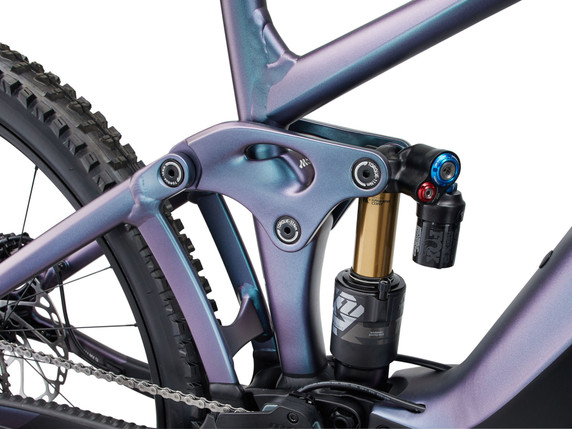

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technic
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting Power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.
Aluxx SSL Aluminium Technology
This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
EnergyPak Plus
This range extender can boost total capacity by 240Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.
RideControl Ergo 3
This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

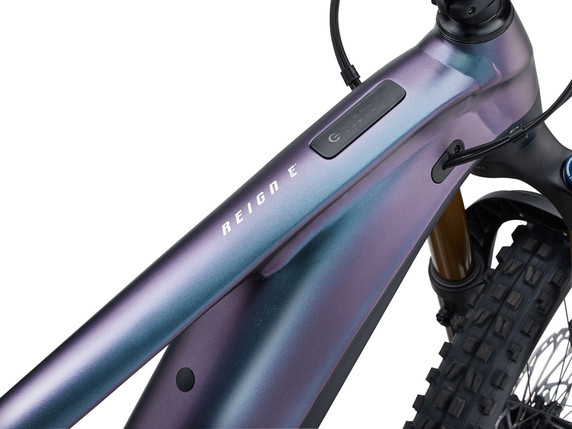

RideControl Go
Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

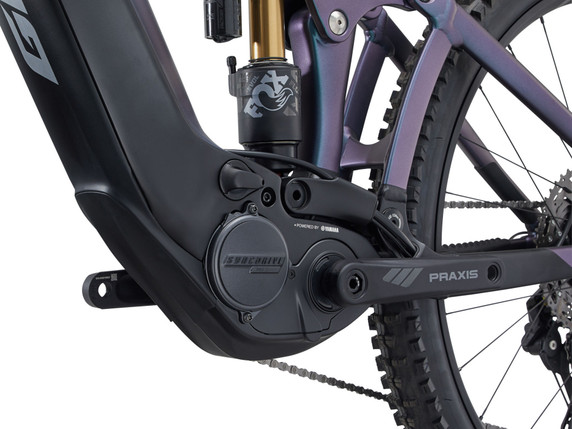

SyncDrive Pro
SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant's high-performance models.
Technical Specifications
Electrical
- Motor: Giant SyncDrive Pro 2, 85Nm, powered by Yahama
- Controller: Giant RideControl Ergo3, grip integrated remote
- Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
- Battery: EnergyPak Smart 800Wh EnergyPak Plus, Giant EnergyPak Plus range extender compatible
- Charger: EnergyPak 6A Smart Charger
- Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Frame
- Sizes: S, M, L, XL
- Colours: Blue Dragonfly/Black
- Frame: ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle

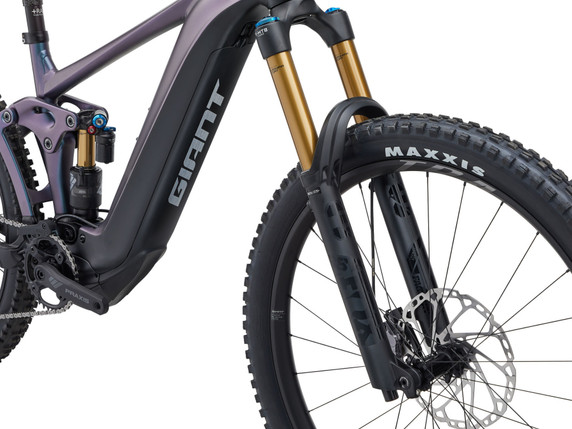

- Fork: Fox 38 Factory E-Tuned, 170mm travel, 44mm offset, GRIP2 VVC damper, Boost Kabolt-X 110x15mm
- Shock: Fox X2 Factory, EVOL Large Volume sleeve, custom tuned
Cockpit
- Handlebar: Giant Contact Trail, 35mm
- Grips: Giant Tactal Pro-E Single Lock-On Grips
- Stem: Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
- Seatpost: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
- Saddle: Giant Romero Trail
- Pedals: N/A
Drivetrain/Groupset
- Shifters: Shimano XT LinkGlide, 1x11
- Front Derailleur: MRP HD2 co-moulded chain guide
- Rear Derailleur: Shimano XT LinkGlide 11-speed, Shadow+
- Brakes: Shimano XT BR-M8120, 4-piston, hydraulic disc, [F] 220mm, [R] 220mm
- Brake Levers: Shimano XT BL-M8100, I-spec EV
- Cassette: Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
- Chain: Shimano LinkGlide, CN-LG500
- Crankset: Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)
- Bottom Bracket: N/A
Wheels & Tyres
- Rims: E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width
- Hubs: E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R]
- Spokes: Sapim E-Lite [R] Race [F], e-bike optimised
- Tires: Maxxis Minion DHF 29x2.6"" foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5"" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Other
- Extras: Tubeless kit (liquid, valves, levers)
- Lock: LockTorx 25 Battery Lock with built-in Torque limiter
- Weight: The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
