Giant Reign SE Gilded Terrain

Big hits and all-out descents.

This trail-crushing enduro machine features a unique paint treatment that makes each bike one of a kind. Its mixed wheel size, with a 29-inch front and 27.5-inch rear, blends stability and speed with agility that pops. The geometry is designed for a longer-travel 165mm rear suspension setup and a 180mm fork, giving you the upper hand on the on the rowdiest trails and bike park terrain.

FEATURES

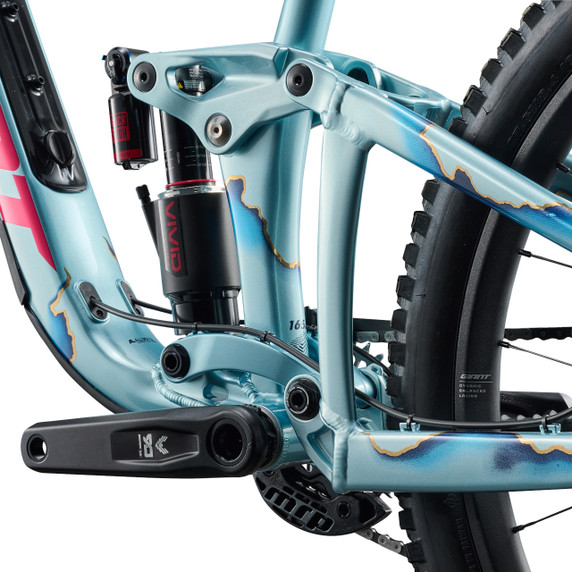

• RACE-BRED SUSPENSION: The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 180mm travel fork. The trunnion mount rear shock has a longer stroke while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.
• ADJUSTABLE ENDURO GEOMETRY: A flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 62.6 or 63-degree head angle and corresponding 77.4 or 77.8-degree seat tube angle, resulting in a 20 or 15mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.
• MIXED WHEEL SIZE: A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and manoeuvrability to help riders rail corners, pop over features and show off their style.
• Advanced Forged Composite Technology: A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
• ALUXX SL Aluminium Technology: This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
• Flip Chip - Maestro 3: This all-new technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It's available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
• MegaDrive: A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedalling stiffness.
• OverDrive: Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• PowerCore: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

SPECIFICATIONS

• Colour: Gilded Terrain
• Sizes: S, M, L, XL
• Frame: ALUXX SL-grade Aluminium front and rear triangles, 165mm Maestro suspension, Flip Chip 2 position, 12x148mm thru-axle, 27.5 rear wheel, integrated downtube storage, 55mm Chainline

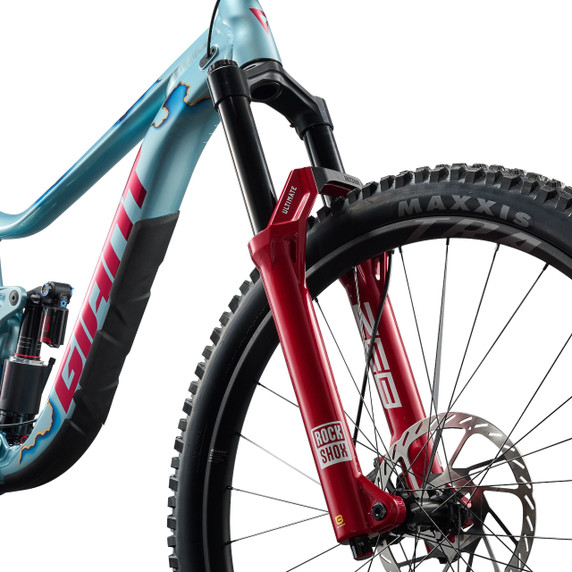

• Fork: RockShox Zeb Ultimate Charger 3.2, 180mm, 15x110mm Maxle Stealth thru-axle
• Shock: RockShox Vivid Ultimate RCT2, 2 position, custom tuned for Giant
• Handlebar: Giant Contact TR35, alloy, 35mm rise
• Grips: Giant Tactal Pro Single lock-on
• Stem: Giant Contact SL 35 — S: 40mm, M: 40mm, L: 40mm, XL: 40mm
• Seatpost: Giant Contact Switch AT dropper, adjustable travel, remote — S: 140-170mm travel / 30.9 x 470mm, M: 140-170mm travel / 30.9 x 470mm, L: 170-200mm travel / 30.9 x 530mm, XL: 170-200mm travel / 30.9 x 530mm
• Saddle: Giant Romero SL
• Pedals: N/A
• Shifters: SRAM Eagle 90 1x12
• Front Derailleur: N/A
• Rear Derailleur: SRAM Eagle 90 Transmission
• Brakes: SRAM Maven Silver, hydraulic, SRAM HS2 rotors — [F] 220mm, [R] 200mm
• Brake Levers: SRAM Maven Silver
• Cassette: SRAM XS-1270 Transmission, 10-52
• Chain: SRAM 70 Transmission
• Crankset: SRAM 90 Transmission, 32t, 55mm chainline — S: 165mm, M: 165mm, L: 165mm, XL: 165mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant TRA Hookless Tubeless-ready Alloy — Fr: 29", Rr: 27.5", 30mm inner width
• Hubs: [F] Giant TRA MTB Alloy Hub, 6 Bolt, 28H; [R] Giant TRX MTB Alloy Hub, SRAM XD Drive Body Pawl Driver (Pawl 36x2 T), 28H
• Spokes: Sapim Laser
• Tyres: [F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR; [R] Maxxis Minion DHR II 27.5x2.4 WT, MaxxTerra, DD, TR — tubeless
• Extras: Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide

Please note that specifications may vary due to component availability at the time of assembly.
