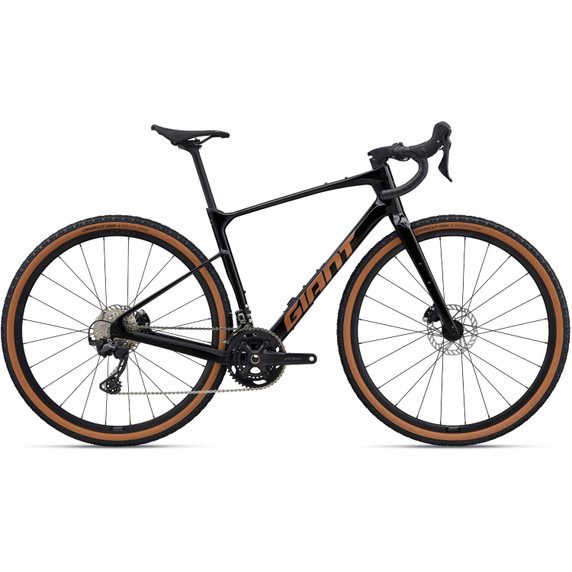

Revolt Advanced 2
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models
Features
- Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
- Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
- OverDrive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
- D-Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.
Specifications
-
Sizes: XS, S, M, M/L, L, XL
-
Colours: Carbon
-
Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
-
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
Grips: Stratus Lite 3.0
-
Stem: Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
Seatpost: Giant D-Fuse, composite, 14mm offset
-
Saddle: Giant Grit
-
Pedals: N/A
-
Shifters: Shimano GRX RX-610, 2x12
-
Front Derailleur: Shimano GRX RX-820
-
Rear Derailleur: Shimano GRX RX-820, Shadow+
-
Brakes: Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
-
Brake Levers: Shimano GRX RX-610 hydraulic
-
Cassette: Shimano CS-HG710, 12-speed, 11x36
-
Chain: KMC X12L-1
-
Crankset: Shimano RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracket: Shimano, press fit
-
Rims: Giant P-X2 Disc wheelset, alloy
-
Hubs: Giant alloy, 12mm thru-axle
-
Spokes: Sapim
-
Tires: Giant Crosscut Grip, 700x45c, tubeless
-
Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
-
Max Tire Clearance: 53mm
