Giant

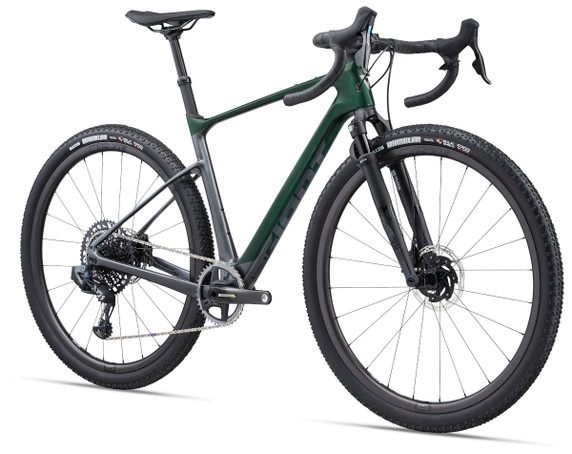

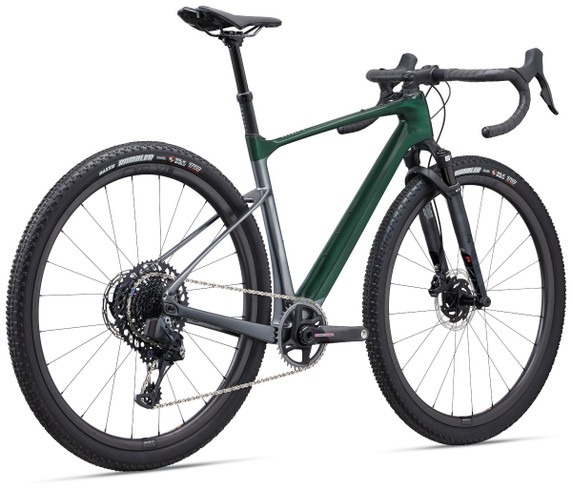

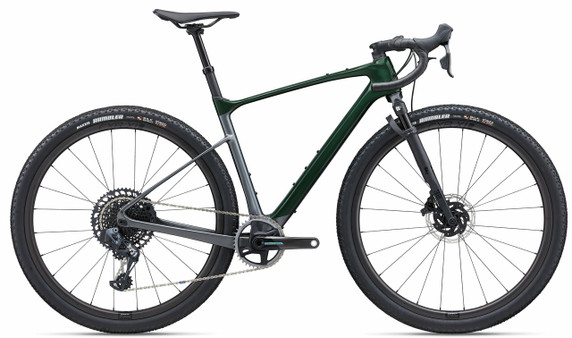

Giant 2024 Revolt X Advanced Pro 0 Forest / Charcoal Gravel Bike
$8,999.00
$7,498.00
(You save
$1,501.00
)
| Store Collection | Pickup from Pushys |
|---|---|
| Price Match | Contact Us Here |
| Easy Returns | Info Here |
| Payment Options | Interest FREE Options Over $30 |
| Pushys ID | 131944 |
Click and Collect will be available in 3-6 business days post purchase. Please wait for your collection ready email before heading in store
Float Through All of It with Speed and Control
Float Through All of It with Speed and Control
Wasboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you'll get on a gravel ride. This new composite gravel machine features a suspension fork engineered compliance.
Smooth Control
Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.
Tuned Compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable To The Terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can use the included dropper seatpost for maximum confidence, or switch to a proprietary D-Fuse seatpost or a standard 30.9mm round seatpost.
Specifications:
Colour
Kelp Forest/Charcoal

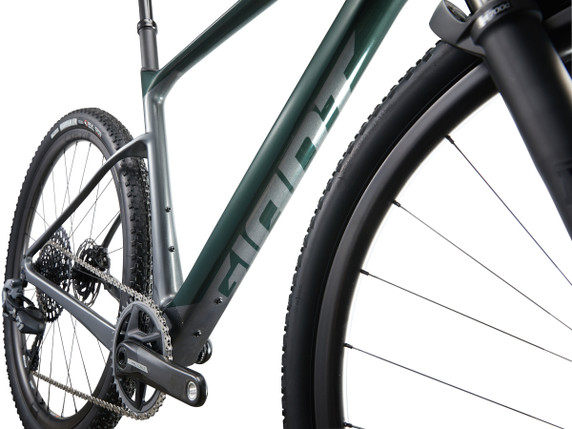

Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

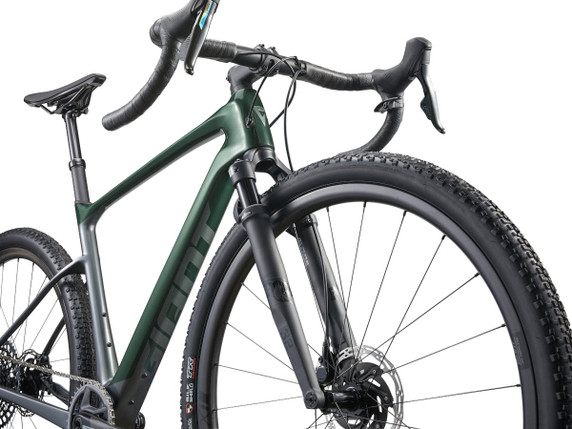

Fork
Fox 32 Float AX Performance Elite, 40mm, Fit 4 damper
12x100mm thru-axle
Components
Handlebar:Giant Contact SL XR D-Fuse, 16-degree flare
Handlebar Width:XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Grips: Stratus Lite 3.0
Stem:Giant Contact, 8-degree
Stem Length:XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm

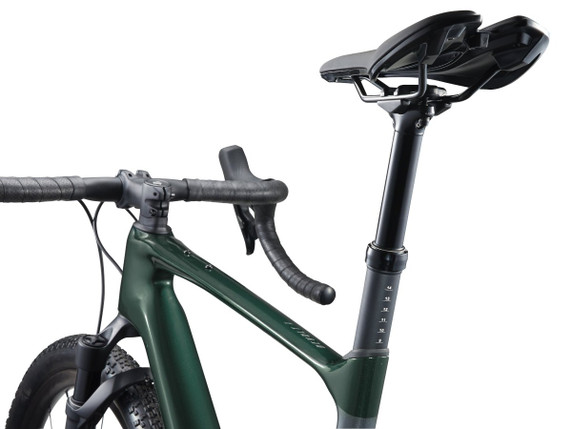

Seatpost:Postmodern, dropper, 30.9mm with 25mm of suspension
Dropper Post Length and Drop:XS:365mm/75mm drop, S:415mm/100mm drop, M:415mm/100mm drop, M/L:415mm/100mm drop, L:415mm/100mm drop
XL: 415mm/100mm drop
Saddle:Giant Approach SL
Drivetrain
Shifters: SRAM Force eTap AXS, 1x12

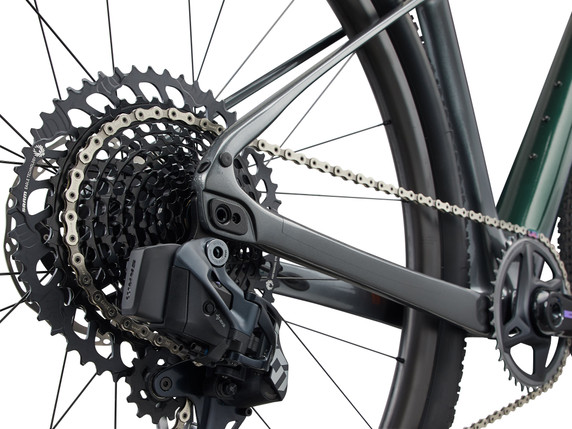

Rear Derailleur:SRAM X01 Eagle AXS
Brakes:SRAM Force eTap AXS hydraulic
Brake Lever:SRAM Force eTap AXS hydraulic, left lever dropper switch
Rotors: SRAM CenterLine rotors Front - 160mm, Rear - 160mm
Cassette: SRAM XG-1295, 12-speed, 10x52
Chain:SRAM X01 Eagle
Crankset:SRAM Force D1 DUB, 40t
Cranklength:XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket:SRAM DUB, press fit
Wheels
Rim:Giant CXR X1 Carbon Disc WheelSystem
Hub: Front -Giant AR alloy, CenterLock, 12mm thru-axle
Rear - Giant AR alloy, 36t ratchet system, CenterLock, 12mm thru-axle
Spokes:Sapim CX-Ray
Tyres
Front -Maxxis Rambler, 700x50c, tubeless
Rear -Maxxis Rambler, 700x50c, tubeless
Extra
Tubeless prepared, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
