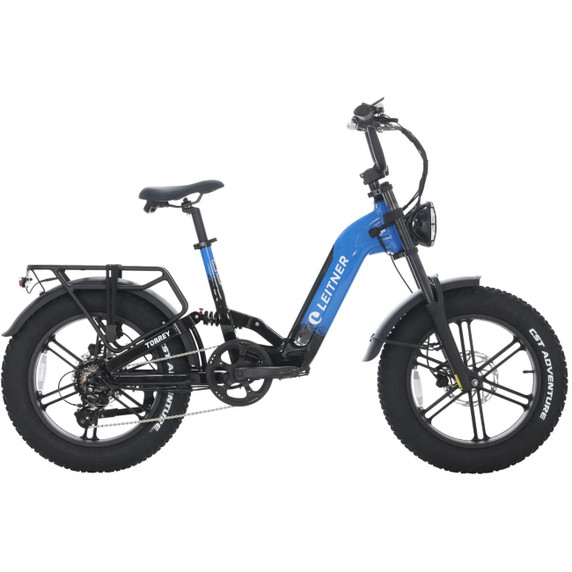

Leitner Torrey 20inch Dual Suspension E-Bike Blue 15Ah

The Leitner Torrey turns road closures into invitations to explore.

Designed to glide over sand, rock and rutted tracks without hesitation, the dual air suspension and wide 20 × 4” fat tyres make it seamlessly easy. Built with an easy step-through frame creates hopping on and off effortlessly, keeping every ride comfortable. The responsive torque sensor reads your every input in real time, the instinctive pedal assist that feels like an extension of your own power allows for struggle-free riding. In any wrong turn, the hydraulic disc brakes will provide confident, precise stopping control in any trip. Loaded or unloaded, Torrey stays planted, stable and hungry for the next detour, ready to push further every time you twist the throttle. Best suited for riders 5'2" and taller. Seat height measured from ground to top of seat: Minimum 82 cm, Maximum: 100 cm.

• Battery: Certified to IEC62133
• Bike: Certified to EN15194
• Tyres: 20" x 4' Mag alloy wheel
• Motor: 250W
• Brakes: Hydraulic disc brakes
• Speed: 25km/h

Features

Dual Air Suspensions
The front air suspension delivers an adjustable 90mm of travel, backed by an extra 34mm of travel from the rear air suspension, all working smoothly with the 20" x 4" fat tyres. The front suspension system features hydraulic lockout, preload adjustment, and air compression turning, giving you full control over your ride. Whether you’re cruising rocky trails, wet sand, muddy slopes, or dusty dirt tracks, the Leitner Torrey keeps things comfortable and hassle‑free all day long.

Power On Demand
The 250W hub motor delivers a solid 60Nm of torque, and when paired with the 48V 15Ah Samsung Battery Cells, you've got the grunt you need for steep climbs and rough trails. It's built to handle the hard stuff without breaking a sweat, keeping your ride smooth and reliable wherever the track takes you.

Hydraulic Disc Brakes
The Leitner Torrey comes equipped with hydraulic brakes on both sides, paired with 180mm rotors front and rear for strong, reliable stopping power. The system features a motor cut‑off function for added control in any riding condition, while the comfort‑grip levers deliver responsive braking and boost overall rider safety.

Safety Certified Integrated Samsung-Cells Battery
The 48V 15Ah (720Wh) removable battery pack, featuring Samsung battery cells, is semi-integrated into the frame— barely noticeable yet packed with long-lasting power. It delivers up to 55km of range on flat terrain. The battery is certified to IEC 62133-2:2017 + A1:2021, in accordance with the NSW Legislative Requirements as of 2025.

Build-in Torque Sensor
The built-in torque sensor adjusts power output based on pedal force, delivering smooth, precise assistance that feels natural on the ride. It also helps extend battery life by ensuring the motor delivers power efficiently.

All-Terrain Versatility
The 20"x 4" magnesium alloy wheels with fat tyres are built for all-terrain versatility, offering durable construction, anti-puncture protection, and excellent shock absorption. With superior grip and reduced vibration, they deliver a smoother, more stable ride across sand, gravel, mud, or whatever the trail throws your way.

Safety Lights - Be Seen ALL the Time
The front light features both low and high beam levels to offer effortless visibility, as well as help signal your presence to others on the road. The lightweight aluminium alloy body of the front light efficiently regulates overheating, keeping it reliable on longer rides. It performs confidently in wet conditions as a fully waterproof light, making it a solid part for commuting, weekend rides, and everything in between.

Colour LCD Display
The colour LCD display provides you with live riding data, tracking your speed, distance, battery voltage and level of pedal assistance. The display features a USB port, allowing riders a smart and enjoyable cycling experience.

Large Rear Rack Capacity
This premium-quality rear rack supports up to 25kg, making it ideal for carrying groceries, child seats, or other everyday essentials. Always secure your load with straps to prevent items from shifting or interfering with the wheels or drivetrain.

7-Speed Shimano Gears
Thumb-controlled Shimano gears will give you extra pedal power when going uphill and higher pedal speed on the flat. Stay in control with the non-slip handle-grip. And the bell, well... it rings ;)

Specifications

• Motor: 48V 250W rear hub motor, 55Nm torque. XOFO is Leitner's preferred motor supplier due to extremely high reliability, outperforming Bafang motors in our experience. Leitner's partnership with XOFO goes back to 2013.
• Battery: Removable 48V 15Ah, 720Wh Lithium-ion battery pack features Samsung Battery Cells. Semi-integrated into the frame, it delivers a sleek design while powering your ride for up to 55km on a single charge over flat terrain.
• Charger: 2A 48V charger, with a charge time of 5-6 hours if the battery is empty.
• Brakes: TEKTRO Hydraulic disc brakes paired with 180mm rotors (2.3mm thickness) with a cut-off function
• LCD Display: LCD colour display provides clear and live riding data, including battery voltage, speed, pedal assistance level and riding parameters, coupled with a built-in USB port.
• Switch Control Panel: Control panel features 5 function button, including display power on/off, speed level adjustment, lights on/off and info button to show riding paraments.
• Lights: Light sensing 100LUX/Low Beam, 230LUX/High Beam integrated LED, IPX 5 waterproof
• Tyres: Puncture-resistant, 20” x 4” CTS tyres are perfect for all terrains.
• Reflectors: Front and rear reflectors, wheel reflectors, pedal reflectors.
• Drivetrain: 7-speed SHIMANO Altus derailleur with thumb shifter on the right side of the handle
• Frame: Aircraft-grade light-weight Aluminium Alloy 6061
• Fork: Air suspension 90mm travel with lock out, preload, compression and rebound tuning
• Rear air suspension: Rear air suspension with 34mm of travel, rated at 1000 pounds, providing strong loading supports
• Rear Rack: Alloy rear rack's load capacity is up to 25kg, to secure the load with straps
• Cranks: 48 tooth sprocket, Alloy, 170mm with double side-walls to prevent chain from slipping off and Pedal Assist Speed Sensor
• Pedals: Pedals with reflective strips
• Weight: 34kg including battery
• Carry Capacity: 120kg
• Mudguards: Alloy front and rear mudguards, in black colour. Light-weight and rust-free, the shape is resilient to impact
• Safety Certified: Leitner ensure that all bike and battery components comply with the applicable standards and regulatory requirements.
• Leitner Torrey is certified to EN 15194:2017+A1:2023 (EPAC); 250W motor, 25km/h limited speed.
• Leitner Torrey's battery is certified to IEC 62133-2:2017 (International Standards).

Whats in the box?

• Leitner Torrey ebike
• Foldable pedals
• Battery charger
• User's manual
• Integrated front light and rear light
• Tool kit
