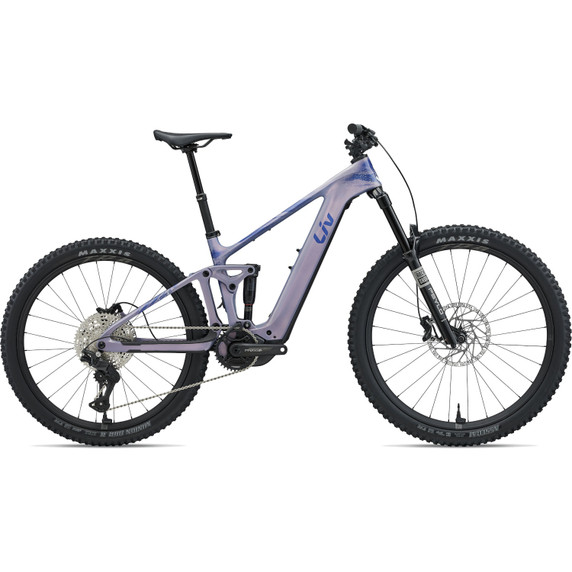

Liv Intrigue Advanced E+ 2 Ember Violet

Intrigue Advanced E+ 2

Chase the next ridge. Clean the big climb. Get after it. Our new full-power carbon e-trail bike hits the sweet spot of power, weight, and handling. Keep it light or add the range extender for an epic day. Defy gravity with sustained support, smooth power delivery, and intelligent traction control. Charge technical terrain with adjustable geometry, MX wheels, and Maestro suspension. The new Intrigue Advanced E+ is ready to move more mountain.

MORE USABLE POWER

The 48 V SyncDrive Pro 4 system delivers sustained 120 Nm support and 850 W peak power for steep, technical climbs. Zero-cadence torque-based response engages in just 0.28 seconds, giving you immediate support to restart and maintain momentum from low-speed situations. Synchronized Power Matrix reads rider and bike inputs to deliver support that feels connected and intuitive, while Traction Control detects rear-wheel slip and refines motor support to help you regain grip when climbs get steep and loose.

MORE RANGE FLEXIBILITY

The EnergyPak Smart 560X packs 560 Wh of full-power capacity into a compact 2.6 kg battery, with a lifespan of up to 2,300 cycles for long-term reliability. Its high-density 352 Wh/L design allows the battery to integrate cleanly into the frame, helping the bike feel easier to move, quicker to respond, and more natural underneath you when the trail gets tight or technical. Add the compatible 280 Wh EnergyPak Plus range extender for up to 840 Wh total capacity—so you can go light or go long.

MORE RESPONSIVE HANDLING

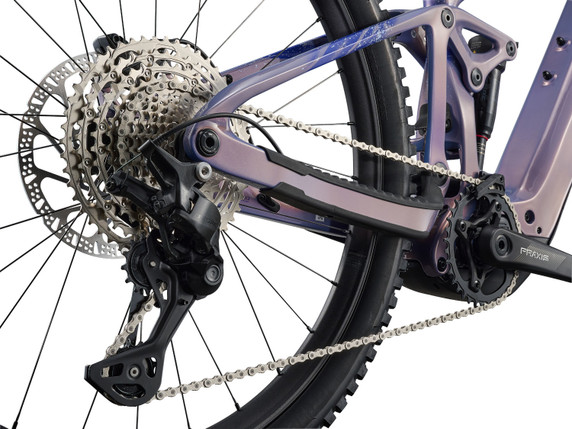

Full Maestro suspension kinematics are preserved through a custom motor housing, keeping the rear wheel active for pedaling stability, traction, and control over rough terrain. With 150mm rear travel, a 160mm fork, MX wheels, a 3-position flip chip, and a 20.0 kg complete bike weight, the chassis stays composed and easier to place through technical climbs, tight corners, and demanding descents. To handle the added forces of full-power riding, TRX and TRA HD WheelSystems use high-torque titanium ratchet hubs that are 20% stronger in fatigue testing and the 300 Nm-rated high-torque KMC chain delivers 35% greater pin strength versus leading benchmark 12-speed chains.

Features

• Giant E+ System: The Giant E+ System unites the motor, battery, and software into an overarching ecosystem that seamlessly combines electric and human power. On the Intrigue Advanced E+, this extends to purpose-built components—including the RideControl Ergo 5 wireless controller and Contact Switch E+ dropper—functioning flawlessly together to produce a smart, connected, and highly intuitive ride.
• Advanced Composite: Mainframe and minimalist rear triangle crafted using inner-molding technologies to create a competitive full-power E-MTB chassis that helps deliver more manageable handling on the trail and off the bike. This ultralight construction seamlessly integrates the 560 Wh battery across all frame sizes.
• Full-Power Optimised Maestro: Four pivot points and two linkages create a single floating pivot. Re-tuned for full-power e-MTB performance and 120 Nm of torque, it manages high drivetrain loads and braking forces to maximise traction and control on technical terrain.

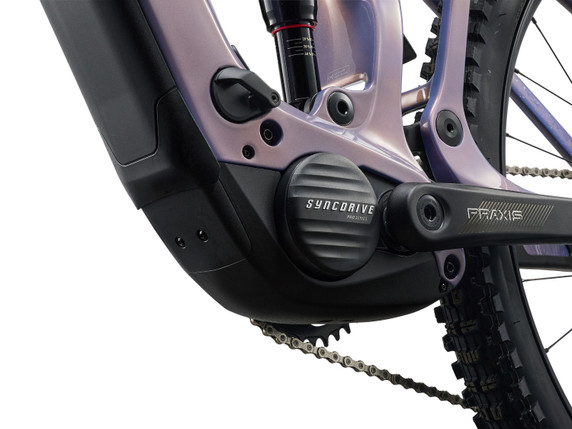

• SyncDrive Pro 4: At just 2.4 kg, the 48 V SyncDrive Pro 4 delivers 120 Nm of torque and 850 W of peak power. By sustaining massive output across the entire cadence range, it delivers Liv’s highest motor torque-to-weight ratio to date.
• Synchronised Power Matrix: The new Synchronised Power Matrix reads six real-time sensors—including torque, slope, and cadence—to provide just the right amount of support. With six precision tuning parameters and fully custom riding modes, it delivers a natural, powerful experience.
• EnergyPak Smart 560X: Integrated 560 Wh battery pack powers a 48 V system using advanced 22700B cells, delivering massive capacity in a compact 2.6 kg package. Exceptionally energy-dense (352 Wh/L), it provides more range with less bulk to keep the bike agile, while smart charging ensures reliable, safe performance ride after ride.
• RideControl Ergo 5: The RideControl Ergo 5 is a single remote that controls key functions including a dropper seatpost and electronic shifting with fully customisable buttons and the ability to add one on each side of the handlebar for enhanced control. *Available on select models

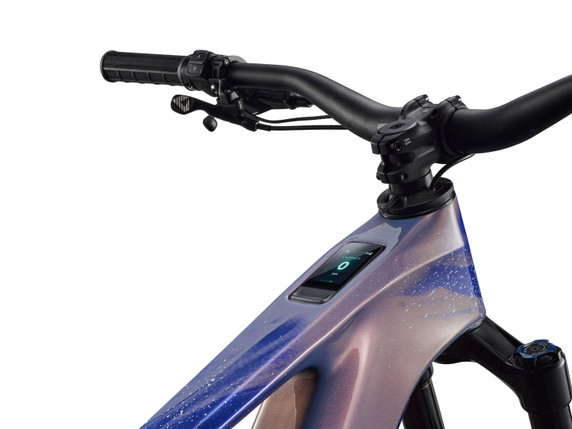

• RideControl Go Lux: Multifunctional button integrated into the top tube makes it quick and easy to power the E-bike and lights on and off. The button is paired with a large full-colour screen to view battery status, remaining range, and front and rear tyre pressure—along with key ride data including speed, time, distance, and cadence.
• Adjustable Geometry: Quickly adjust the frame geometry to three different positions (low, mid, high) to suit your riding style and terrain. The adjustment affects the bottom bracket height and head tube and seat tube angles. It’s easy to do using eccentric hardware (flip chips) located on the upper rocker arms of the Maestro rear suspension system.
• Contact Switch E+ Seatpost: The industry-leading Contact Switch E+ dropper seatpost is fast, fully integrated and built for E-bikes, making it easy to adjust saddle height for greater control and confidence on the trail.*Available on select models
• High-Strength Trail Components: The TRX/TRA HD WheelSystem and heavy-duty 300 Nm KMC chain reinforce the drivetrain against massive motor torque. Built with a 20% stronger titanium ratchet and 35% more chain pin strength, this setup delivers full confidence when you’re putting the power down.
• Aegis Tyre Checker: Real-time monitoring via the RideControl Go Lux display lets you check pressures and receive instant rapid-drop alerts. A 600-hour battery ensures your grip is always optimised for the most demanding trails.

Specifications

• Motor: Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power
• Controller: Giant RideControl Ergo 5 wireless Integrated E+ System
• Classification: ASTM/EN Class 4 EN17406 / ISO4210-2M
• Display: RideControl GO LUX, frame integrated LED display ANT+
• Battery: EnergyPak Smart 560Wh EnergyPak Plus 280 range extender compatible
• Charger: 48V 4A Smart Charger X
• Sizes: XS, S, M
• Colours: Ember Violet
• Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle
• Fork: RockShox Psylo Gold RC, 160mm travel, 44mm offset, Isolator RC damper, Maxle Stealth 15x110 thru-axle
• Shock: RockShox Deluxe Select, custom tuned
• Handlebar: Giant Contact TR35, 35mm Rise
• Grips: Liv Tactal Pro Single lock-on
• Stem: Giant Contact SL 35mm XS: 40, S:40mm, M:40mm
• Seatpost: Giant Contact Switch AT travel-adjustable dropper, remote XS: 110-140mm travel / 30.9 x 395mm, S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm
• Saddle: Liv Sylvia HD
• Pedals: N/A
• Shifters: Shimano Deore, 1x12
• Rear Derailleur: Shimano Deore, Shadow+
• Brakes: TRP EVO Comp, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm
• Brake Levers: TRP EVO Comp
• Cassette: Shimano Deore CS-M6200, 10-51T
• Chain: KMC e12HT
• Crankset: Praxis e-HD alloy crank arms Praxis steel direct mount, 36T chain ring XS:155mm, S: 155mm, M:155mm
• Bottom Bracket: N/A
• Rims: Giant E-TRA Hookless Tubeless ready Alloy 29" [F] 27.5" [R] 30mm inner width
• Hubs: [F] Giant E-TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRA MTB Alloy Hub, HG Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H
• Spokes: Sapim Laser, e-bike optimised
• Tyres: Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C Maxx Grip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, EXO+ 3C Maxx Terra [R]
• Extras: Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool)
• Lighting: Optional: Giant Recon series e-bike lights available and direct-connect compatible
• Fender/Chainguard: Co-moulded guide 32-36T adjustable
• Combined Max Load Limit: 156 kg
