The new benchmark for a no-nonsense 20mm axle front hub.
Durable design with high-quality bearings, excellent weather sealing and thicker rotor mounts for steep, sustained descents.
FEATURES
- Go Fast. Stop Fast: OneUp increased the thickness of the 110x20 Front Hub brake rotor mount for increased durability and to accommodate extra-large front rotors that come with DH racing and riding.
- Direct Mount Design: Using an oversized bearing layout, the fork axle directly interfaces with the bearings, allowing the hub to deliver the most possible stiffness at the lowest possible weight.
- Easier Lacing: Updated flange drillings make wheelbuilding easier than ever, with inboard and outboard spokes both passing through freely, unobstructed by rotor mounts.
Things You Should Know
- Machined 7075 aluminium body uses an integrated drive ring
- Hub flange spacing improves strength and stiffness of wheels built on OneUp hubs
- Thicker front rotor mounts and larger flanges withstand the abuse of aggressive, steep and technical riding.
- Ratchets, bearings, seals, freehubs and small parts available direct from OneUp
SPECIFICATIONS
- Hub Spacing: Boost (15mm x 110mm)
- Hole Count: 32
- Weight: 183g
- Colours: Black, Silver
- Material: 7075 T6 Aluminium
- Brake Mount: 6 Bolt
- Spokes: J-Bend

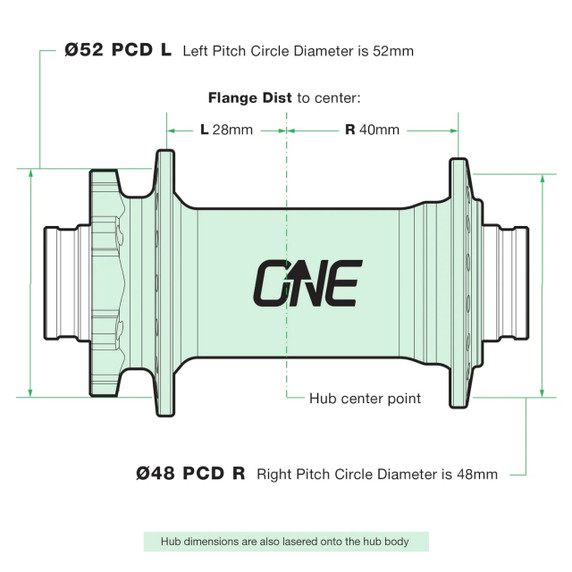

- Rear Hub Dimensions: PCD-L: 52.5, Flange Dist-L: 28. PCD-R: 48, Flange Dist-R: 40
- End Caps: Tool free installation
- Bearings: high-quality MR17287
- Seal: high-quality Silicone Freewheel Seal
What's in the Box
- 1x Front hub (assembled)
- 2x Standard End Caps
- Note: Standard end caps come installed on the Front Hub.
