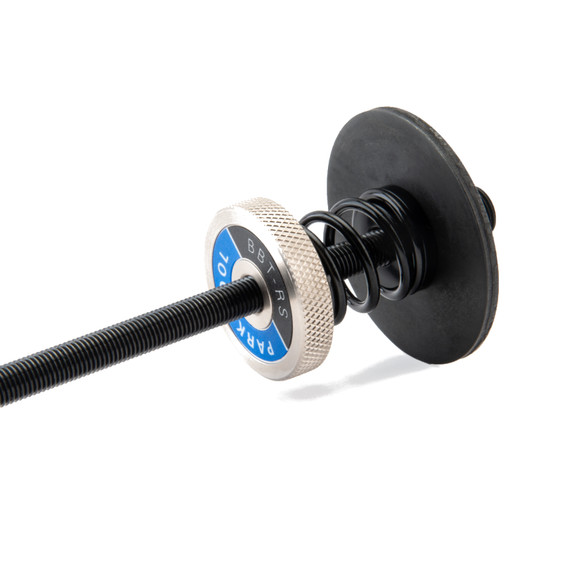

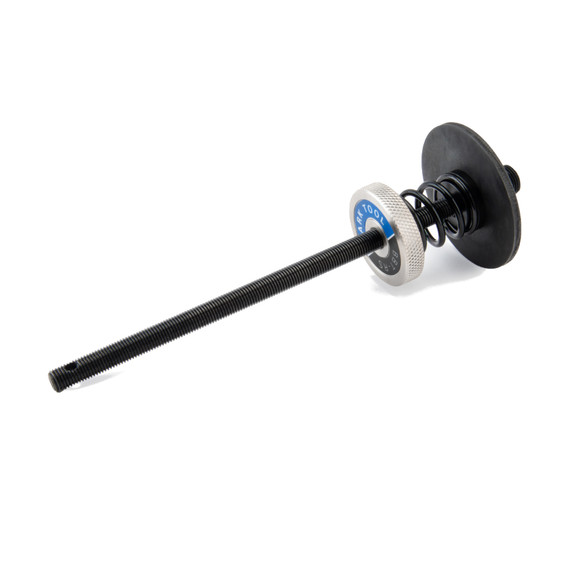

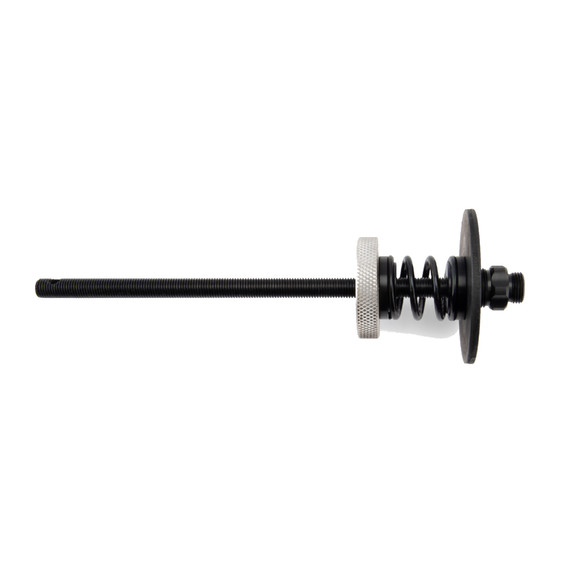

Bottom brackets have some of the highest torque specs of any component found on a bicycle. Despite this, some bottom bracket cups feature tool fittings that allow mere millimeters of engagement, which can be a problem when attempting removal or installation. Solution: the Park Tool Bottom Bracket Tool Retaining System. Used in conjunction with nearly any Park Tool bottom bracket tool, the BBT-RS uses a spring-based tension system to apply consistent, adjustable pressure to the tool, ensuring full engagement with the tool fitting and preventing slippage.
Compatible with the following bottom bracket styles:
- Threaded cup
- Thread-together
- Cartridge
- Cup-and-cone
Compatible with the following bottom bracket tools:
. BBT-27.3
. BBT-35-12
. BBT-35-36
. BBT-47-12
. BBT-47-16
. BBT-49.3
. BBT-59.3
. BBT-69.3
. BBT-69.4
. BBT-79.3
. Wrench-style bottom bracket tools with a handle (e.g. Park Tool BBT-9, BBT-29, HCW-4)
. Bottom bracket tools with external wrench flats (e.g. Park Tool BBT-19.2, BBT-22)
Tool specifications:
. Rod length: 175 mm (6.9")
. Rod threading: M8 x 1.0
. Adapter nut threading: M12 x 1.0 & M15 x 1.0
. Speed nut diameter: 38 mm (1.5")
. Washer diameter: 57 mm (2.25")
