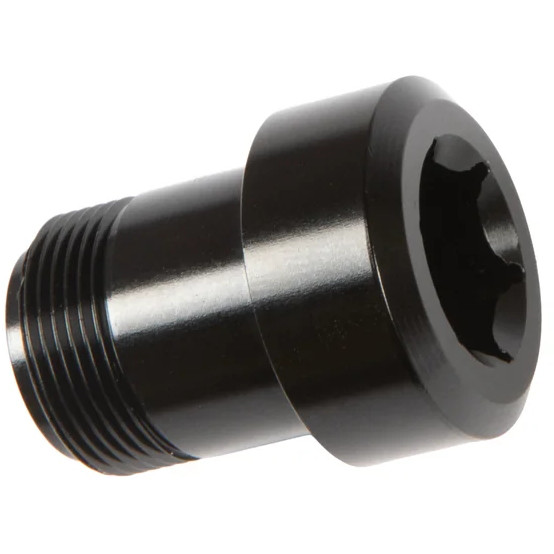

A direct replacement for SRAM's Full Mount Bolt Kit, designed to enable compatibility with Restrap's Switch Axle and Switch Rack System on GX, XX, and X0 T-Type transmissions.
Full Mount Adaptor FM23 (GX):
- GX Eagle Transmission: RD-GX-E-B1
- Force XPLR AXS Transmission: RD-FRC-1E-E1
- Rival XPLR AXS Transmission: RD-RIV-1E-E1
- Eagle 70 Transmission: RD-70-A1
- Eagle 90 Transmission: RD-90-A
- S1000 Eagle Transmission: RD-S1000-E-A1
Fitting:
- Put your bike into the red setting gear on the cassette and engage the clutch release
- Partially remove your current thru-axle
- Undo and remove the bolt derailleur with an 8mm hex key
- Replace with the Restrap bolt, using the supplier adaptor if you do not have a 12mm hex key
- Swap in the Switch Axle and tighten
SPECIFICATIONS
- Compatibility: Designed for use with Restrap Switch Axle, 1mm thread pitch
- Dimensions: FM23 (GX): Ø23mm x H:28.80mm
- Weight: 13.8g
- Torque: 35Nm
