The Robert Axle Project

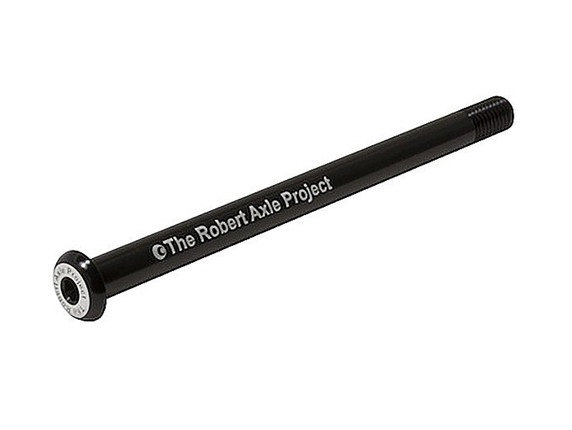

Robert Axle Project Lightning 12mm Rear Bolt-on Axle


$84.99
Choose Options:
Clear Selection

Product Barcode

×


162/167mm x M12 x 1.0 Thread
167mm (or 162mm with included spacer)
M12 x 1.0
12mm




163mm x M12 x 1.5 Thread
163mm
M12 x 1.5
12mm




167mm x M12 x 1.75 Thread
167mm
M12 x 1.75
12mm




167/172mm x M12 x 1.0 Thread
172mm (or 167mm with spacer)
M12 x 1.0
12mm




168mm x M12 x 1.5 Thread
168mm
M12 x 1.5
12mm




170mm x M12 x 1.75 Thread
170mm
M12 x 1.75
12mm




172mm x M12 x 1.5 Thread
172mm
M12 x 1.5
12mm




174mm x M12 x 1.75 Thread
174mm
M12 x 1.75
12mm




175/183mm x M12 x 1.5 Thread
183mm (or 175mm with spacer)
M12 x 1.5
12mm




178mm x M12 x 1.5 Thread
178mm
M12 x 1.5
12mm




180mm x M12 x 1.75 Thread
180mm
M12 x 1.75
12mm




198mm x M12 x 1.75 Thread
198mm
M12 x 1.75
12mm




209mm x M12 x 1.5 Thread
209mm
M12 x 1.5
12mm




209mm x M12 x 1.75 Thread
209mm
M12 x 1.75
12mm




229mm x M12 x 1.5 Thread
229mm
M12 x 1.5
12mm




229mm x M12 x 1.75 Thread
229mm
M12 x 1.75
12mm




Note: Thru-axle lengths do not equal hub standards. An axle has to be longer than the hub to fit in the frame


More details
-->
Stock Availability
National Delivery

Select an Option
Brisbane Store
In Store & Click'n'Collect
Canberra Store
In Store Only
Fast Shipping Free Shipping On Orders Over $99
Price Match Contact Us Here
Easy Returns Info Here
Payment Options Interest FREE Options Over $30
Pushys ID 159720
Product ID 159720


After years of mountain biking with thru-axles with bulky handles that seemed to strike every trailside obstacle, they needed a better option.



Lightning Bolt-On thru axles offer the highest quality, simple, lightweight alternative to that bulky handle. Available in a range of sizes that fit both front and rear wheels on all types of thru-axle equipped bikes.





Features



Lightning is Better - Front and rear Lightning Bolt-On axles offer a stronger, more durable, lower profile and lighter weight option to replace your stock thru-axles.

Low Profile -No more bulky handles to strike trail obstacles or create wind drag. Aerodynamic design.

Light Weight -Axles are internally bored to remove unnecessary material without compromising strength.

Easy to install -Matching front and rear Lightning Bolt-On Axles only require a standard 6 mm hex wrench for easy installation and removal.

Better Tolerances - Manufactured in the USA to the tightest tolerances using aerospace materials and CNC manufacturing. No longer will your axle loosen while riding.



Specifications


























































































































Axle Length Thread Pitch Diameter
153/158mm x M12 x 1.0 Thread 158mm (or 153mm with included spacer) M12 x 1.0 12mm
159mm x M12 x 1.5 Thread 159mm M12 x 1.5 12mm


162/167mm x M12 x 1.0 Thread		 167mm (or 162mm with included spacer) M12 x 1.0 12mm


163mm x M12 x 1.5 Thread		 163mm M12 x 1.5 12mm


167mm x M12 x 1.75 Thread		 167mm M12 x 1.75 12mm


167/172mm x M12 x 1.0 Thread		 172mm (or 167mm with spacer) M12 x 1.0 12mm


168mm x M12 x 1.5 Thread		 168mm M12 x 1.5 12mm


170mm x M12 x 1.75 Thread		 170mm M12 x 1.75 12mm


172mm x M12 x 1.5 Thread		 172mm M12 x 1.5 12mm


174mm x M12 x 1.75 Thread		 174mm M12 x 1.75 12mm


175/183mm x M12 x 1.5 Thread		 183mm (or 175mm with spacer) M12 x 1.5 12mm


178mm x M12 x 1.5 Thread		 178mm M12 x 1.5 12mm


180mm x M12 x 1.75 Thread		 180mm M12 x 1.75 12mm


198mm x M12 x 1.75 Thread		 198mm M12 x 1.75 12mm


209mm x M12 x 1.5 Thread		 209mm M12 x 1.5 12mm


209mm x M12 x 1.75 Thread		 209mm M12 x 1.75 12mm


229mm x M12 x 1.5 Thread		 229mm M12 x 1.5 12mm


229mm x M12 x 1.75 Thread		 229mm M12 x 1.75 12mm


Note: Thru-axle lengths do not equal hub standards. An axle has to be longer than the hub to fit in the frame
