Rocky Mountain Altitude PowerPlay C70 Dyname Red/Purple

Designed alongside the Dyname 4.0 drive system, the Altitude Powerplay has everything riders need for aggressive enduro e-biking.

The Altitude Powerplay shares the many of the same attributes as Rocky Mountain's race proven Altitude—geometry, kinematics, and adjustability.

FEATURES

• Dyname™ S4 Pro: Dyname™ S4 Pro, only available on Powerplay, is incredibly powerful and is truly a leader among e-bike motors. The power curve was designed within the software to deliver the 108Nm smoothly, allowing the rider to soft pedal around tight switchbacks or drop the hammer through a chunky, punchy, portion of trail.
• Size Specific Tune: Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. The design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
• Two-position axle: The two-position axle allows the rider to choose a short or long rear-centre length that suits their personal preferences.
• RIDE-4™ adjustment system: The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
• SMOOTHWALL™ Carbon: Smoothwall carbon uses one of the world's most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.

SPECIFICATIONS

• Frame: SMOOTHWALL™ Carbon | Integrated Display | LC2R Suspension System | Threaded BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle
• Fork: Fox 38 Float EVOL GRIP X2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
• Shock: Fox Float X2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210 x 55mm | MD - LG - XL = 230 x 65mm | Size-Specific tune in FAQ
• Headset: FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
• Stem: Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
• Handlebar: Race Face Turbine | 780mm Width | 40mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp
• Grips: ODI Elite Pro Lock On
• Brakes: Sram Maven Silver Stealth 4 Piston | Metal Pads
• Shifters: Sram Eagle 90 Transmission Single Click

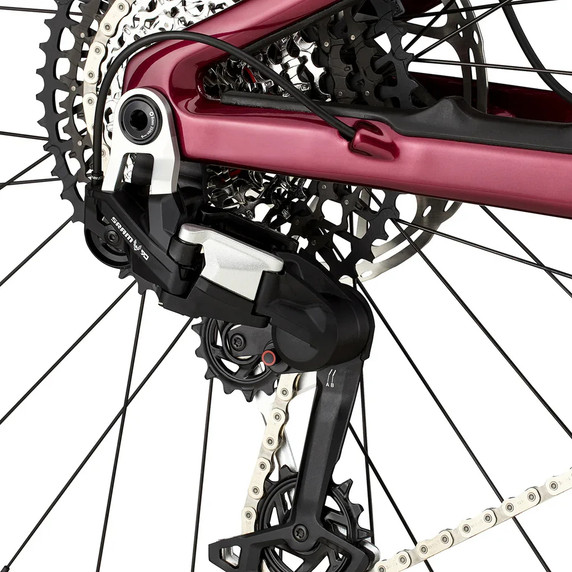

• Rear Derailleur: Sram Eagle 90 Transmission
• Cranks & Chainring: Race Face Aeffect Cinch | 34T Transmission Ring | 24mm Spindle | SM - XL = 165mm
• Bottom Bracket: Race Face BSA 73 24mm
• Cassette: Sram GX Eagle Transmission 10-52T
• Chain: Sram GX Eagle Transmission
• Tyres: F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
• Seatpost: OneUp V3 Dropper 30.9mm | SM = 150mm | MD = 180mm | LG = 210mm | XL = 240mm
• Saddle: WTB Solano Fusion Form 142 | Cromoly Rails
• Weight NW: This information isn't available yet. Rocky Mountain will update the weight of this model as soon as possible.

Electrical Components

• Drive System: Dyname S4 Pro Mountain Bike Drive | 250w Nominal Power | 1000W Max Power | 110Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
• Battery: 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
• Charger: Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector
• Display: Rocky Mountain Jumbotron | Drive System Customisation | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

Rocky Mountain make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.

Sizing

• Small: 157.5 - 170 cm / 5’2” - 5’7”
• Medium: 167.5 - 177.5 cm / 5’6” - 5’10”
• Large: 175 - 188 cm / 5’9” - 6’2”
• X-Large: 185.5 - 198 cm / 6’1” - 6’6”
