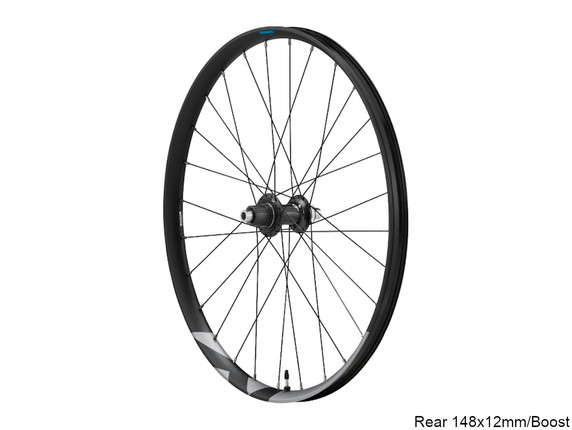

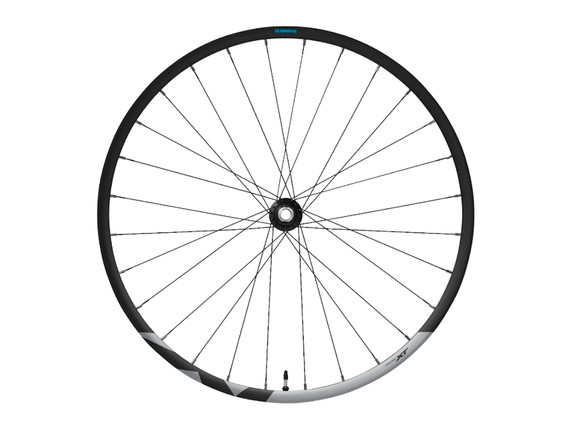

Shimano Deore XT wheels bring robust performance to any trail
The aluminum tubeless rims are offset for balanced spoke tension. Double butted, straight-pull spokes are laced to Center Lock hubs with reliable, smooth-rolling labyrinth seal hubs.
Technologies
Center Lock -The Center Lock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
Micro Spline - delivers lightweight aluminum Freehub body to reduce weight and 10 teeth top gear.
Use combination with Micro Splinecassette sprocket and Freehub.
* Micro Spline patents are pending
Features
Front
- Reliable high-speed cornering
- Front 15 mm E-THRU axle +15% torsional stiffness +25% transverse shear stiffness (vs 9 mm quick release)
- Simple setup and reliable trail performance
- 28 J-bend spokes (2.0-1.8-2.0 double butted)
- External rim width: 34.7 mm
Rear
- Reliable high-speed cornering
- Faster acceleration amplifies riding excitement
- Smaller spline diameter for 10T top gear by MICRO SPLINE
- Simple setup and reliable trail performance
- Rear 12 mm E-THRU axle
- Zero dish
- 28 J-bend spokes (2.0-1.8-2.0 double butted)
- External rim width: 34.7 mm
Specifications
| Front | Rear | |
|---|---|---|
| Average Weight | 875 | 1016 |
| Spokes | J-Bend | J-Bend |
| Quick Engagement | - | X (max 7.0 deg.) |
| Brake Type | Center Lock Disc | Center Lock Disc |
| Axle Fixing Method | 15 mm E-Thru | 12 mm E-Thru |
| O.L.D. | 110mm | 148mm |
| Rear Speeds | - | 12 |
| Axle | Fixing Method: 15mm E-Thru Thru Axle Length x Inner Diameter: 110x15 |
Fixing Method: 12mm E-Thru Thru Axle Length x Inner Diameter: 148x12 |
| Bearing | Cone: CBN Stainless Ball: Yes |
Cone:CBN & Polish |
| Rim | Height: 19.8mm Offset Rim: Yes Requires Rim Tape: X (30-584) Rim Joint: Welding Width: 34.7mm |
Height: 19.8mm Offset Rim: Yes Requires Rim Tape: X (30-584) Rim Joint: Welding Width: 34.7mm |
| Seal | Hub:Labyrinth & Contact | Freehub Body: Contact Hub:Labyrinth & Contact |
| Spokes | Butted: 2.0-1.8 Number: 28 |
Butted: 2.0-1.8 Number: 28 |
| Tyre | Recommended size:27.5 x 2.25 - 2.60 Type: Tubeless |
Recommended size:27.5 x 2.25 - 2.60 Type: Tubeless |
| Wheel Size | 584 x 30C (650B = 27.5 inch) | 584 x 30C (650B = 27.5 inch) |
