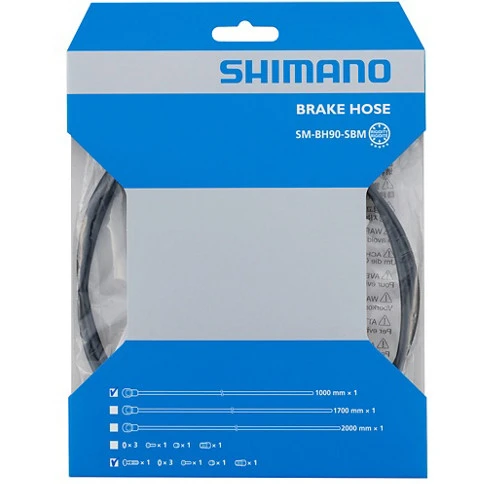

Make sure your brakes are good to go with this Shimano SM-BH90-SBM Disc Brake Hose kit to complete your build. The hose is 1000mm in length and has a Banjo Bolt on one end. The other end is straight cut. It comes with all of the necessary O-rings / Insert / Olive and Cable Clamping Blocks required for installation. All you need are the tools. Wrapped with anti-corrosion treatment and suitable for either front or rear brakes, this hose is compatible with magnesium calipers/levers like the XTR M9000 / M9020.
Box Contents
1 x 1000mm length hose with banjo bolt
2 x Clamping blocks
1 x Olive
3 x O-rings
1 x Insert
plus misc. mounting hardware
Do Not Reuse Parts
Do not reuse the Olive piece or the Connector Insert when reinstalling. A damaged or reused olive, or connector insert, may not provide a secure brake hose connection, possibly causing the brake hose to disconnect from the calipers or brake lever. If the brake hose becomes disconnected, there is danger that the brakes may suddenly stop working.
Cutting The Brake Hose
Cut the brake hose so that the cut end is perpendicular to the length of the hose. If the brake hose is cut at an angle, fluid leaks may result.
Box Contents
1 x 1000mm length hose with banjo bolt
2 x Clamping blocks
1 x Olive
3 x O-rings
1 x Insert
plus misc. mounting hardware
Do Not Reuse Parts
Do not reuse the Olive piece or the Connector Insert when reinstalling. A damaged or reused olive, or connector insert, may not provide a secure brake hose connection, possibly causing the brake hose to disconnect from the calipers or brake lever. If the brake hose becomes disconnected, there is danger that the brakes may suddenly stop working.
Cutting The Brake Hose
Cut the brake hose so that the cut end is perpendicular to the length of the hose. If the brake hose is cut at an angle, fluid leaks may result.
. Genuine Shimano SM-BH90-SBM replacement disc brake hose
. 1000mm Hose Kit with installation accessories
. XTR BR-M9000 and BR-M9020 compatible
. Suits magnesium calipers/levers like the XTR M9000 / M9020
. Banjo Bolt on one end, straight cut on the other end
. O-rings, Insert, Olive and Cable Clamping Blocks supplied
. Special surface treatment helps prevent corrosion
. Works on front or rear brakes
Specifications
. Item: Brake Cable/Housing
. Series: XTR, XT, Deore, SLX
. Connection: Straight - Banjo
. Length: 1000mm
. Weight: 29g (hose)
. Weight: 50g (hose & parts)
. Country of Manufacture: Japan
. Warranty: 2 years against defects in materials or workmanship
Compatible With
BL-M9000/BR-M9000, BL-M9020/BR-M9020
BL-M988, BL-M988-B, BL-M985/BR-M985
BL-M987/BR-M987
BL-M785, BL-M785-B/BR-M785
BL-M675, BL-M675-B/BR-M675
BL-M666/BR-M666
BL-T785, BL-T785-B/BR-T785
BL-S700, BL-S700-B/BR-S700
