Smiles for Miles
Easy to Ride
Easy to Share
The NBD has an adjustable cockpit that only takes seconds to resize, all without tools. Riders 147 – 190 cm tall (4’10” – 6’3”) comfortably fit the NBD, so it comes ready for you to share with loved ones.
Easy for Everyone
The simple joy of riding your favorite bike as a kid is unlike any other, and the NBD is here to help you rediscover that feeling. With inclusive design at the forefront, people of many different sizes and abilities can share the fun of riding thanks to the NBD’s accommodating geometry and unique frame design.
As Comfortable as Can Be
You ride to melt away stress, not to add to it. With wide, ergonomic grips on swept handlebars, an upright riding position, and a multi-adjustable stem, the NBD is our most comfortable bike. Add wide balloon tires and a suspension seatpost to the mix, and most road vibration becomes a thing of the past.
Built to Last
Our philosophy is to keep our bikes on the road for as long as possible, not to create disposable products that are built to fail. We start with intentional design choices that make the bike serviceable and safe—and end up with a reliable vehicle you can use day in, day out. Then, we back it up with great local service and a 10-year warranty for peace of mind.
What Makes it a S5i?
- Bosch Performance Line motor provides up to 65 Nm of torque and 300% support
- Bosch PowerPack 500 powers longer trips, commutes, and journeys
- Gates belt drive for clean, quiet, maintenance-free operation
- Shimano Nexus INTER-5E internal hub
- Magura MT4 hydraulic disc brakes for superior stopping power—even when carrying a passenger and riding fast
Features
- Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm (4'10" - 6'3")
- Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg Maximum Gross Vehicle Weight
Specifications
- General Info
- Speeds: 1 x 5
- Weight: 23.4 kg (51.6 lb)
- Gear Inches: 34" - 90" (2.75 - 7.22 m)
- Frame Sizes: One size
- Folding Size: 38 × 156 × 79 cm (15 × 61.4 × 31.1 in)
- Folding Time: 5 sec
- Distance: Seatpost to Handlebar: 45 - 52 cm (17.7 - 20.5 in)
- Distance: Saddle to Pedal: 70 - 100 cm (27.6 - 39.4 in)
- Suggested Rider Height: 147 - 190 cm (57.9 - 74.8 in)
- Max Gross Vehicle Weight: 140 kg (308.6 lb)
- Max Rider Weight: 120 kg (264.6 lb)
- Frame
- Frame: Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
- Fork: Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg
- Cockpit
- Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Headset: Tern Flux by FSA, cartridge bearings, Physis integrated
- Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
- Grips/Bar Tape: Ergon
- Saddle: Tern Upright by Velo
- Seatpost: Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
- Seatpost Clamp: Tern Collar
- Brakes
- Front Brake: Magura MT4, hydraulic disc
- Rear Brake: Magura MT4, hydraulic disc
- Brake Levers: Magura, hydraulic
- Brake Cable & Housing: Magura, hydraulic
- Wheels
- Front Hub: Shimano disc
- Rear Hub: Shimano Nexus INTER-5E
- Spokes & Nipples: Stainless steel
- Rims: Kinetix Comp, for disc
- Tires: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
- Transmission
- Shifter: Shimano 5 spd.
- Crankset: Tern NBD custom, Gates CDX CNC machined beltring
- Cassette/Freewheel: Gates CDX, precision CNC machined cog
- Chain: Gates Carbon Drive CDX belt

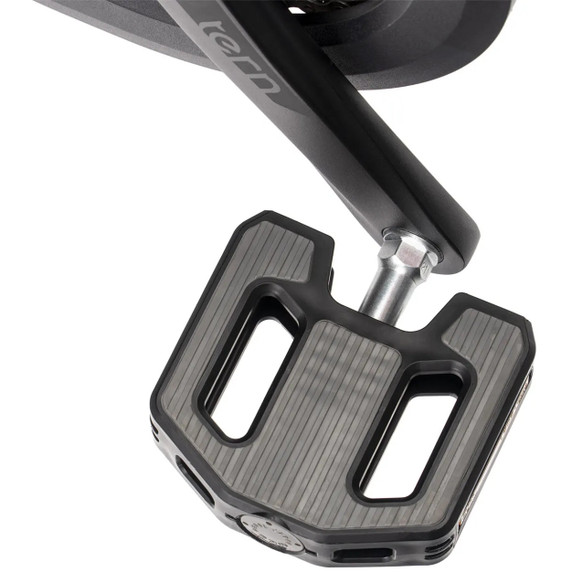

- Pedals: MKS Platform, Tern custom design
- Shifter Cable & Housing: Shimano
- E-System
- Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 500
- Display: Bosch Intuvia, 4 mode selectable, walk assist
- Range: 51-118 km (32-74 mi)
- Charger: Bosch Standard Charger
- Bells & Whistles
- Bell: Aluminum
- Chainguard: Tern Custom, full chain cover
- Kickstand: Ursus, rear mount
- Luggage Socket: Combo Mount
- Front Light: Tern Valo Direct, 190 lumens
- Rear Light: Herrmans
- Fenders: SplashGuard, stainless hardware
- Rack: Gaia Rack, 27 kg capacity, Vertical Parking
- Frame Lock: ABUS, keyed-alike with Bosch battery
