Explore New Ground

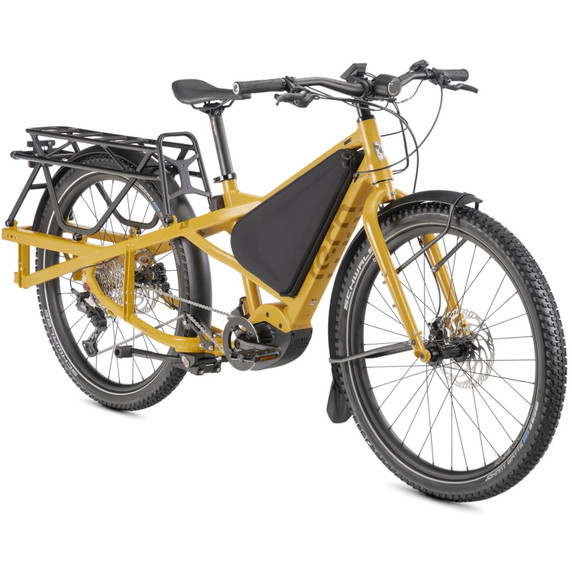

The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations, and redefines what’s possible by bike with a massive Max Gross Vehicle Weight of up to 210 kg (462 lb) for best-in-class cargo capacity.
Go Anywhere
Tame Tough Terrain
Orox turns No-Man’s Land into your very own playground. Massive, bespoke Schwalbe all-terrain tires or stud-compatible Vee Snowball tires with extra-wide footprint are capable of handling challenging surfaces with superb traction and cushy comfort, making loose gravel, ice, snow, sand, and mud no match for the bike.
Keep Going When Others Fail
When the going gets tough, the tough push through on the Orox. Sinewy and unyielding, it’s a bike built to endure conditions not for the faint of heart. EFBE-certified strong and fitted with durable, low-maintenance components chosen to withstand hardship, the Orox keeps you in the game while others crumble to hostile earth.
Conquer The Uphill Battle
Make short work of steep climbs with the Orox. At its heart pulses the Performance Line CX, one of Bosch’s most powerful e-bike motors, and along with aggressive, high-traction tires and hill-climbing gears that scream for action, riders get the boost they need to counter the force of gravity and tackle roots, rocks, and other trail obstacles.
Decelerate With Confidence
With great power comes even greater responsibility to rein it all in—imagine the amount of braking force needed to slow down a charging, 210 kg (462 lb) fully-loaded Orox! That’s why we chose Magura’s powerful quad piston hydraulic brakes with the largest 203 mm rotors for maximum braking power to safely and reliably bring the Orox and all that it carries to a halt.
What makes it an S12?
- Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
- 29" Schwalbe Johnny Watts all-terrain tires
Features
- Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support

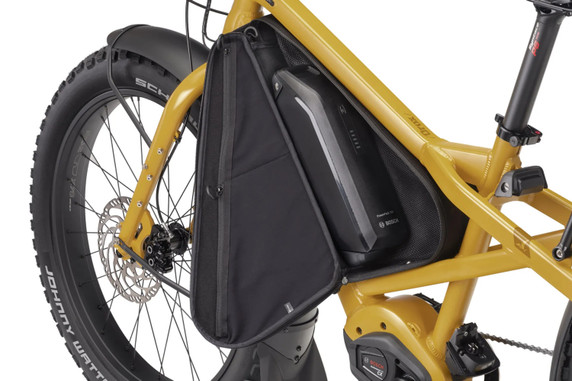

- Dual-battery system draws from up to two batteries for ultra-long range
- Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
- Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
- Powerful and responsive Magura 4-piston hydraulic brakes
- EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
- Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)
Specifications
- General Info
- Speeds: 1 x 12
- Weight: M: 34.4 kg (75.8 lb)
- Gear Inches: 18" - 95" (1.48 - 7.54 m)
- Frame Sizes: M, L
- Bike Size:
- M: 214 × 82 × 107.5 cm (84.3 × 32.3 × 42.3 in)
- L: 218 × 82 × 109.5 cm (85.8 × 32.3 × 43.1 in)
- Wheelbase:
- M: 134 cm (52.8 in)
- L: 137 cm (53.9 in)
- Seat Tube Length:
- M: 46 cm (18.1 in)
- L: 50.5 cm (19.9 in)
- Top Tube Length:
- M: 61 cm (24 in)
- L: 64.5 cm (25.4 in)
- Stack Height:
- M: 62.5 cm (24.6 in)
- L: 65 cm (25.6 in)
- Standover Height:
- 70 cm (27.6 in)
- Distance:
- Seatpost to Handlebar:
- M: 61 - 66 cm (24 - 26 in)
- L: 67 - 73 cm (26.4 - 28.7 in)
- Saddle to Pedal:
- M: 71 - 99 cm (28 - 39 in)
- L: 76.5 - 104.5 cm (30.1 - 41.1 in)
- Seatpost to Handlebar:
- Suggested Rider Height:
- M: 155 - 185 cm (61 - 72.8 in)
- L: 165 - 195 cm (65 - 76.8 in)
- Max Gross Vehicle Weight:
- On-road: 210 kg (463 lb)
- Off-road: 180 kg (396.8 lb)
- Max Rider Weight: 130 kg (286.6 lb)
- Frame
- Frame: Tern Orox, 6061-AL, patented design, EFBE tested and approved
- Fork: Atlas X, butted chromoly steel, EFBE tested and approved
- Cockpit
- Stem: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
- Headset: FSA, 1.5", angular contact bearings
- Handlebar: Level Nine, AL-7050, 800 mm, riser, eMTB approved
- Grips/Bar Tape: Ergon

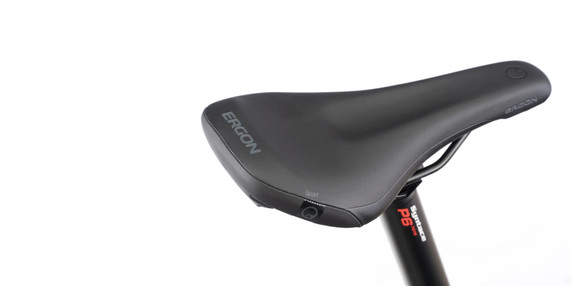

- Saddle: Ergon SM, E-Mountain Sport, CrMo Rail
- Seatpost: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
- Seatpost Clamp: Tern Collar
- Brakes
- Front Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
- Rear Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
- Brake Levers: Magura MT5, hydraulic
- Brake Cable & Housing: Magura, hydraulic
- Wheels
- Front Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 29"
- Rear Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 29"
- Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
- Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
- Spokes & Nipples: Stainless steel
- Rims: Tern Atlas X, custom doublewall construction

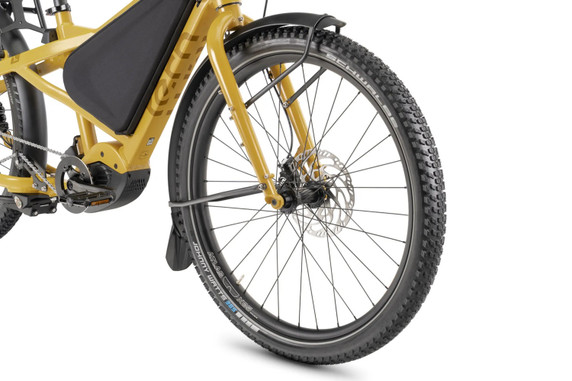

- Tires: Schwalbe Johnny Watts 29" x 2.6"
- Transmission
- Shifter: Shimano Deore, 1 x 12 spd
- Rear Derailleur: Shimano Deore XT Shadow+
- Crankset: Tern Orox custom
- Cassette/Freewheel: Shimano 10-51T, 12 spd
- Bottom Bracket: Motor integrated
- Chain: KMC 12 spd, for eBike, EPT corrosion resistant coating
- Pedals: MTB, non-slip
- Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
- E-System
- Motor: Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: 725 Wh, Bosch Dual Battery pack ready
- Display: Bosch Kiox 300 w/ LED remote, electronic bike lock
- Range: 725 Wh: 84 - 146 km (52 - 91 mi); 1450 Wh: 168 - 292 km (104 - 181 mi)
- Charger: 220V, 4A (EU); 100-240V, 4A (US)
- Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
- Bells & Whistles
- Bell: Pitch Plus, brass
- Tool: Thru-axle lever, 4/5 mm, Torx 2.5 mm
- Chainguard: Custom Bash Guard
- Paint Protection: ToughShield film on top and downtube, self-healing
- Kickstand: Atlas Kickstand XL Cargo ready
- Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
- Rear Light: LED w/ G-Sensed Brake Light
- Fenders: Aluminum, heavy duty construction, oversize stays, 29"

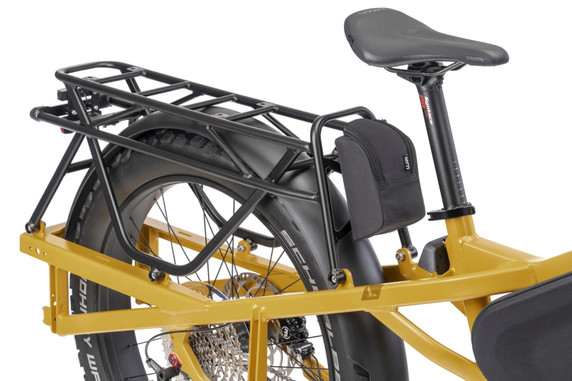

- Rack: Atlas X, 100 kg (220 lb) capacity
