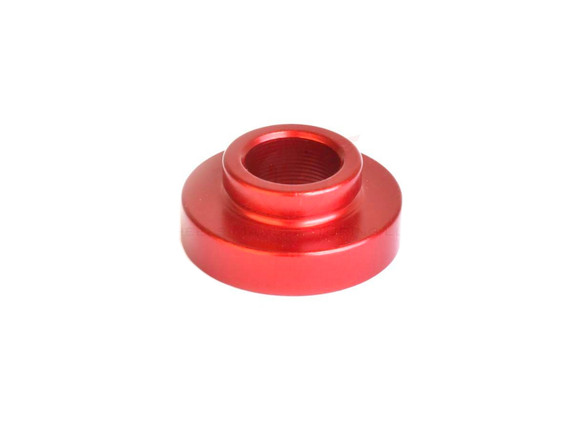

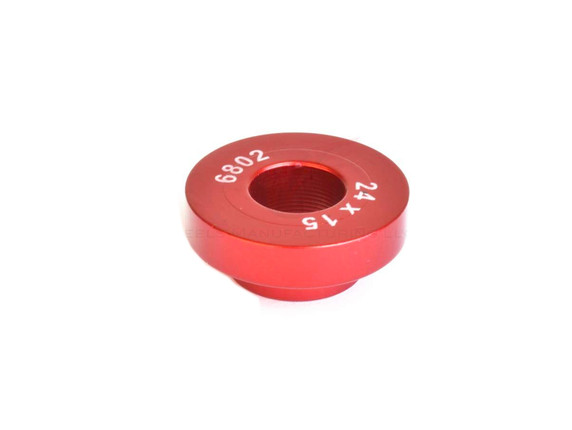

Their 6802 open bore adapter is used to press 24x15 sealed bearings.
The adapter is machined with one step at 15mm OD, which fits into the center of the sealed bearing.
Features
Inner hole sized to fit 3/8" ACME threaded rod
Specifications

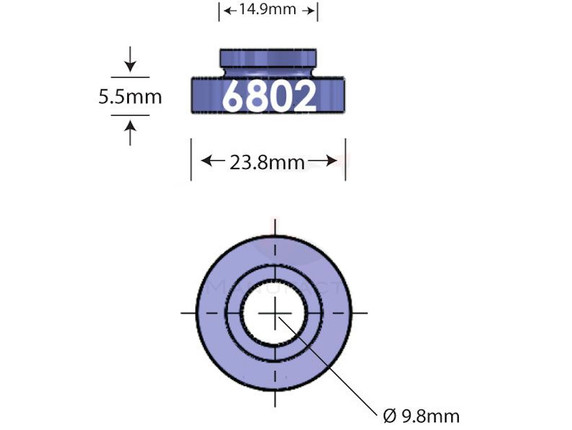

| Installs | 6802 Bearing |
|---|---|
| Inner Step Outer Diameter | 14.8mm |
| Outer Diameter | 23.8mm |
| Thickness | 5.5mm |
| Thru Hole Diameter | 0.387" (9.8mm) |
| Compatibility | PRESS-1 or PRESS-4 handles |
| Material | Machined, red anodized aluminum |
