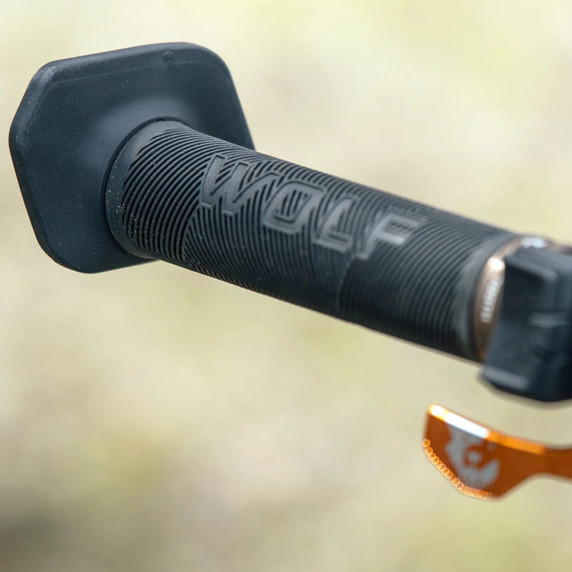

Wolf Tooth Locked-In Bar Ends

Wolf Tooth Locked-In™ Bar Ends give riders more control with reduced fatigue for gravity riding.

A firm, ergonomic outboard flange supports the rider's hand allowing for a lighter grip on the bars and reduced arm pump so you can push your bike harder for longer. These were designed in collaboration with World Cup downhill athlete Joe Breeden.

FEATURES

Durable, Ergonomic Support: Finely tuned comfort and support for your hands that allows you to ride harder all while reducing fatigue and improving control.

Anti-Rotation Design: Lobed interface prevents the bar ends from rotating within the handlebar during pinned descents.

Engineered For Speed: Built to withstand the rigors of a World Cup DH season, Locked-In Bar Ends are the result of years of iterative development.

• Allows the rider to use the sides of their hands to push against the ends of the bars for increased control and reduced fatigue
• A firm ergonomic rubber outboard flange supports and locks in the rider's hand allowing for a lighter grip on the bars and reduced arm pump
• Protects the hand/pinky finger
• Patent Pending

SPECIFICATIONS

• Weight: 93 g pair
• Material: 80A Durometer Rubber, 6061-T6 aluminium
• Dimensions: 101.6 mm x 76.2 mm x 38.1 mm
• Tool required: 4 mm Hex Wrench | Torque 3 Nm

Compatibility

• Compatible with most carbon and aluminum handlebars with an 18.0mm or wider internal diameter.
• Incompatibility Note:
  • Deity Speedway Carbon: Internal step; may fit if the bars have not been cut down.
  • Chromag BZA Carbon: Internal step; may fit if the bars have not been cut down.
  • Hope 35R Carbon: Not compatible (internal diameter is too small).
• Use of the Locked-In Bar Ends requires a grip with an open end. Many grips with closed ends can still be made to work by punching out the closed end.
• Some grips may have a removable bar end but still have a small lip on the plastic liner that keeps the grip from being able to be pushed inboard from the end of the bar [Ergon GA2, GDH]. WolfTooth recommend removing this lip by sanding it off using a Dremel tool.
• What grips don't work:
  • Grips with angled ends [Ergon GE1 Evo]
  • Wolf Tooth don’t suggest using grips with outboard lock on clamps, especially if the outboard clamp is an integrated bar end [Chromag Squarewave]

Installation

• Move grips inboard away from the end of the handlebars.
• Insert the bar end and lightly tighten the bolt with a 4mm hex wrench. Don't worry about the angle yet.
• Make sure that the hexagonal pieces of the cap and wedge are interfacing before installing.
• Move the grip back out until it is in contact with the bar end and tighten the lock collar on the grip.
• Loosen bar end, adjust angle, tighten to 3Nm.
• After the wedge expands into the rubber, the rubber will relax. You may need to torque the bar ends multiple times until the bolt stops spinning.
• Check brake lever location. Most likely, you should move your brake lever outboard slightly, so that the outside of your hand is in contact with the bar end while you are still comfortably grabbing the brake.
• Reminder: Periodically check the torque/ retighten the bolt on the bar ends. The rubber will relax over time, so it's important to ensure the bar end is still tight.

Helpful Tips

• The angle of your bar ends is critical and differs for each rider based on hand position, wrist "sag", brake position, and even type of riding.
• If you feel any hot spots, a quick angle adjustment is all you need.
• Your grips do need to be moved in slightly. The bar end needs to go over the bar per our installation instructions.
• Your brake levers may need to be adjusted out slightly for proper reach.
