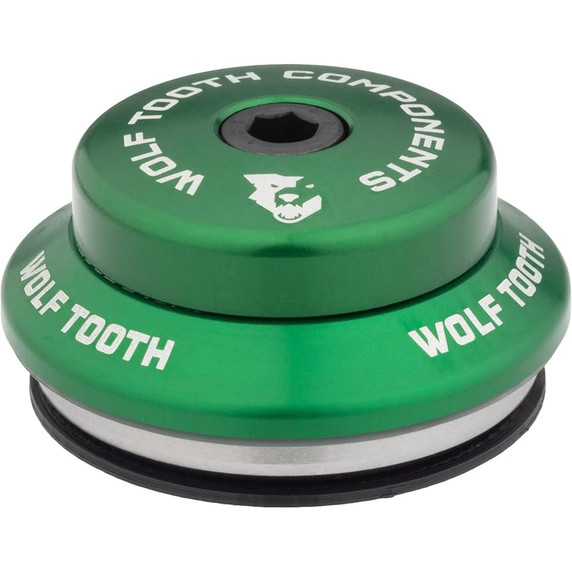

Wolf Tooth Performance IS Headsets - Integrated Standard
Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Performance Headsets are built with Enduro black oxide bearing. They are designed to be lightweight, strong, and durable. These IS headsets are for frames with moulded-in internal bearing cups.
Upper assembly features
- Ultralight Stem Cap With Integrated Spacer plus an aluminum bolt and a star nut.
- 7mm top cover = 8mm total stack.
- O-ring seal prevents water intrusion around steerer tube.
- Custom-molded upper lip seal provides additional protection for upper bearing.
- Bearing top cap outer diameter 45.8 mm
Specifications
- Weight: 7mm: 52g
- Material: 6061 aluminum
- Bevel Angle: 36 x 45 degrees
- Stem Cap Bolt Torque Spec: 2-3 Nm with light grease on threads only
Compatibility
- Any frame that uses IS (Integrated Standard) headsets with 41mm upper and 52mm lower outer bearing diameter.
- Enduro black oxide steel sealed bearings included on both the upper and lower.
- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).
