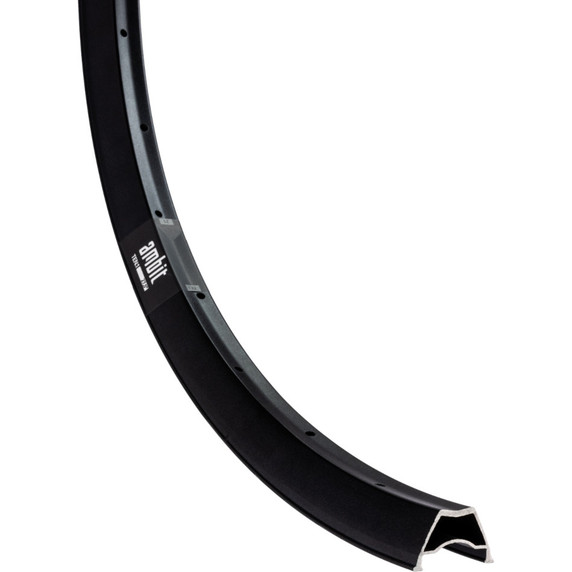

The concept behind the REALM RIM dates back to 2016, when Swen Lauer, Ambit’s Head of Engineering, developed the first prototype featuring a wide rim flange – laying the foundation for Ambit's first in-house rim.
The result is an exceptionally strong aluminium rim, purpose-built for demanding use on both MTB and E-MTB bikes. The wide hook improves flat protection and reduces the risk of snakebites by up to 28%, offering dependable impact resistance. The low-profile front rim design provides excellent damping and delivers precise, controlled ride characteristics – especially on rough terrain. Its concave nipple interface optimises spoke alignment, improving overall wheel strength and long-term durability. The REALM RIM has already proven itself at the sport’s biggest events – including Red Bull Hardline and Crankworx, ridden by Ambit athletes
Specifications:
- Material: AL6069-T6 single wall extruding profile Welded
- Tubeless ready
- IW 30, hook with 4 mm and 4.5 mm
- Use only flat flat double-concave washers from Ambit® for spoking
- Rim material: Alloy
- Hole Count 32
- Concave Rim Depth 21 mm
- Inner rim width 30 mm
- ERD 591 mm
- Spacer 3,1 mm
- Suitable tire width 2.25 - 2.8
- Rim weight 684 g+/-8%
- Max spoke tension: 120Kgf
