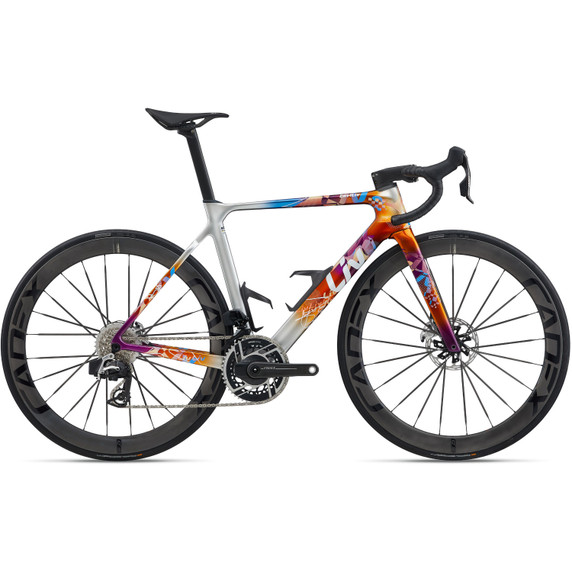

EnviLiv Advanced SL Maraya Aubergine

Optimised Aerodynamics

In our pursuit of maximum power and efficiency, we analyse how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The EnviLiv features truncated ellipse airfoil tube shapes and the Liv Contact SLR Aero handlebar, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the new EnviLiv has found the sweetest spot, with an Advanced SL-grade composite frameset. We use Continuous Fibre Technology to add strength without adding weight, Carbon Nanotube Technology resin to improve impact resistance, and Fusion Process for lighter, stronger frame junctions. So you can accelerate faster away from the pack.

Seamless Integration

When every second matters, so does every detail. So we developed a way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Features

• Advanced SL Composite Technology: Liv’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fiber Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
• AeroSystem Shaping Technology: Tubing shapes engineered using computational fluid dynamics (CFD) and wind-tunnel data to optimize each tube shape for superior aerodynamic performance.
• OverDrive Aero: Found inside the head tube of the all-new EnviLiv range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
• Tubeless System: Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
• PowerCore: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
• Vector SLR Seatpost: Using more continuous carbon fibers and titanium bolts, the Langma’s first fully-carbon seatpost is lightweight, aero, and easily adjustable.

Specifications

• Sizes: XS, S, M
• Colours: Maraya Aubergine
• Frame: Advanced SL-Grade Composite, integrated seatpost, disc
• Fork: Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
• Handlebar: Liv Contact SLR Aero XS:36cm, S:38cm, M:40cm
• Grips: Stratus Elite 2.0
• Stem: Giant Contact SL Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm
• Seatpost: Giant Vector SLR, composite, -5/+15mm offset
• Saddle: CADEX AMP
• Pedals: N/A
• Shifters: SRAM RED AXS HRD, ED-RED-E1
• Front Derailleur: SRAM RED AXS, FD-RED-E-E1
• Rear Derailleur: SRAM RED AXS, RD-RED-E-E1
• Brakes: SRAM RED AXS HRD, ED-RED-E1, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers: SRAM RED AXS HRD, ED-RED-E1
• Cassette: SRAM RED XG-1290, 12-speed, 10-33
• Chain: SRAM RED-E1, 12-speed
• Crankset: SRAM RED E1, DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm
• Bottom Bracket: SRAM DUB Ceramic, Press Fit
• Rims: CADEX Ultra 50 Disc WheelSystem, [F]50mm, [R]50mm
• Hubs: [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C40 Aero Low Friction Hub, 40T ratchet driver, CenterLock, 12mm thru-axle
• Spokes: CADEX Super Aero Carbon Spoke
• Tyres: CADEX Aero, tubeless, 700x25c (26.5mm), folding
• Extras: Computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
• Max Tyre Clearance: 30mm
