AWL is Adventure Without Limits.

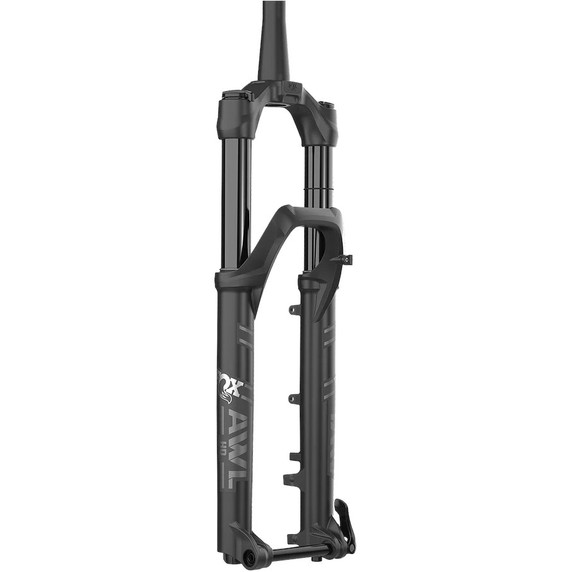

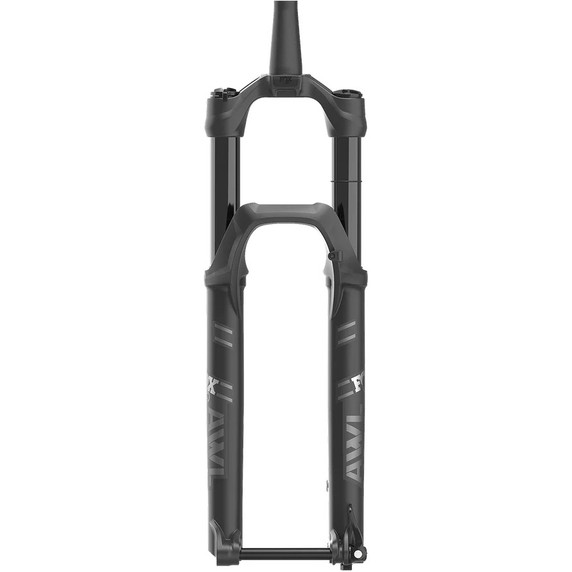

These E-SUV forks are designed to be tunable, capable, and incredibly reliable. Whether racing the clock to squeeze in another lap or exploring further than you ever have, AWL suspension is here to make every ride limitless. And it’s now available in a heavy-duty version with 36mm stanchions — the AWL HD.
E-SUV Optimised
AWL is built on proven, high-performance suspension design to handle the greater demands of riding farther, faster and hauling more gear with full-power e-bikes and e-SUVs.
Race Pedigree
The AWL features 34mm stanchions, tracking precisely without unwanted flex regardless of the terrain. This fork is rigorously tested to withstand a 169kg total weight rating.
Adventure Ready
Fender, rack and light mounts are integrated into the fork for optimal compatibility, durability and versatility. Available in both 27.5 and 29 wheels sizes.
Specifications
- PART NUMBER: 910-21-287
- CHASSIS: e-Optimized
- WHEEL SIZE: 29in
- TRAVEL: 140mm
- DAMPER: RAIL
- DAMPER CONTROLS: Sweep-Adj
- AXLE: 15QRx110
- RAKE: 44mm
- STEERER: 1.5 Tapered
- CROWN: 58HT
- UPPER TUBE FINISH: Black Anodized
- AIR CHANNELS: N/A
- BLEEDERS: N/A
- FLOATING AXLE: N/A
- ROTOR SIZE: 160 direct Post Mount, Up to 230 compatible
- MUD GUARD MOUNT: N/A
- AIR SPRING: N/A
- STARTING WEIGHT: 2135g
- DECAL: Std/Matte Black
- AXLE TO CROWN: N/A
- FORK COLOR: Matte Black
- STANCHION: 36
- MODEL YEAR: 2025
What's In The Box?
- Star Nut
- Brake Hose Clip
- 3 x Volume Spacers
- Owners Manual
- FOX Sticker
