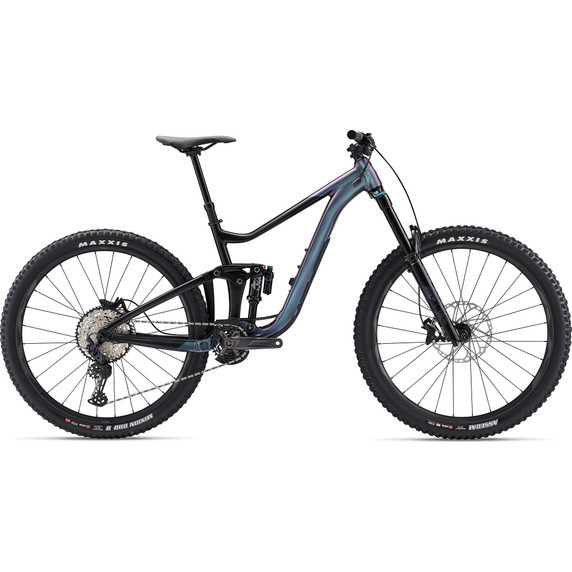

Push new limits on challenging terrain. This enduro ripper has 160mm of rear suspension that eats up rocks, drops and whatever comes your way. A three-position flip chip lets you adjust geometry and switch out the rear wheel from 29-inch to 27.5.
Race-bred Suspension
A Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
Adjustable Enduro Geometry

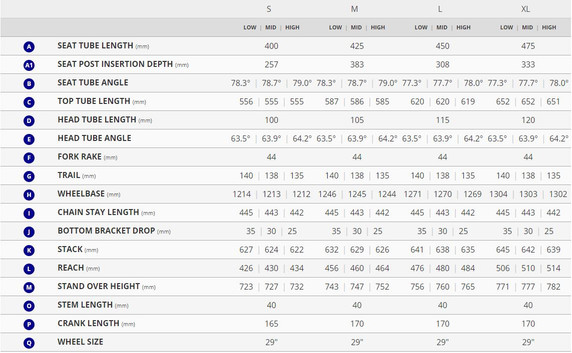

Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
Rear Wheel Options
Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It's a quick and easy way to adjust the bike's handling and feel.
Aluxx SL Aluminium Technology
This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
Advanced Forged Composite Technology
A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Overdrive
Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
Flip Chip - Maestro
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
Technical Specifications
Frame
- Sizes: S, M, L, XL
- Colours: Blue Dragonfly/Black/Chrome
- Frame: ALUXX SL-Grade Aluminium front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm chainline
- Fork: Fox 38 Performance Elite, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
- Shock: Fox Float X Performance Elite, 205/62.5, custom tuned for Giant
Cockpit
- Handlebar: Giant Contact TR35, alloy, 35mm
- Grips: Giant Tactal Pro Single lock-on
- Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
- Seatpost: Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 200mm travel / 30.9 x 559mm
- Saddle: Giant Romero
- Pedals: N/A
Drivetrain/Groupset
- Shifters: Shimano SLX SL-M7100, 1x12
- Front Derailleur: N/A
- Rear Derailleur: Shimano SLX RD-M7100
- Brakes: Shimano Deore BR-M6120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
- Brake Levers: Shimano Deore BL-6100
- Cassette: Shimano SLX M7100, 10x51
- Chain: Shimano
- Crankset: Shimano MT512, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
- Bottom Bracket: Shimano, press fit
Wheels & Tyres
- Rims: Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
- Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
- Spokes: Stainless steel
- Tires: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , DD, TR tubeless
Other
- Extras: Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
- Weight: The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
