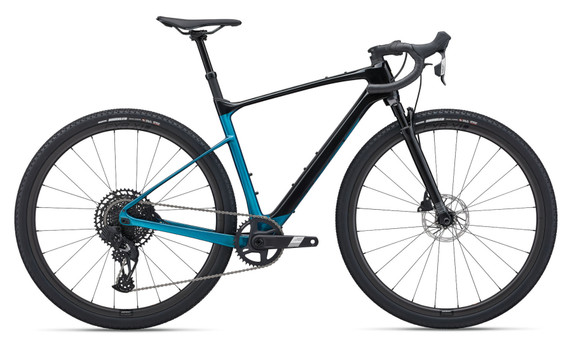

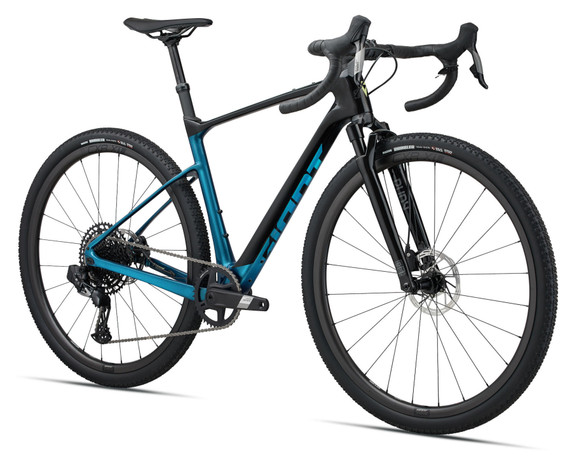

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you'll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.
Smooth Control

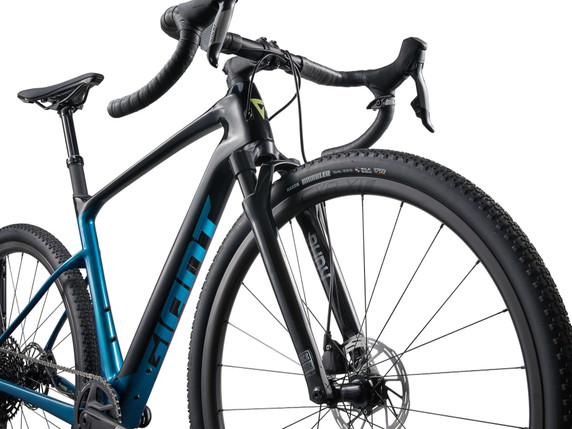

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.
Tuned Compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the Terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.
Advanced Composite Technology
Giant's High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.
Overdrive
Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
Flip Chip - Dropout
Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Technical Specifications
Frame
- Sizes: XS, S, M, M/L, L, XL
- Colours: Black/Sea Sparkle
- Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork: RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
- Shock: N/A
Cockpit
- Handlebar: Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
- Grips: Stratus Lite 3.0
- Stem: Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
- Seatpost: Post Moderne, dropper, 30.9mm with 25mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
- Saddle: Giant Approach SL
- Pedals: N/A

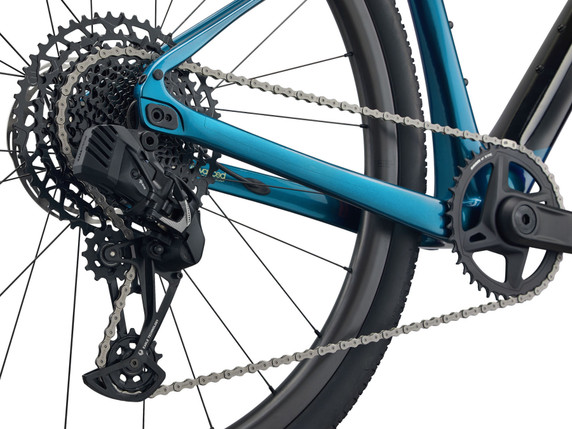

Drivetrain/Groupset
- Shifters: SRAM Apex eTap AXS, 1x12
- Front Derailleur: N/A
- Rear Derailleur: SRAM X1 Eagle AXS
- Brakes: SRAM hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
- Brake Levers: SRAM Apex AXS hydraulic, left lever dropper switch
- CassetteS: RAM PG-1230, 12-speed, 11x50
- Chain: SRAM NX Eagle
- Crankset: SRAM Apex D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket: SRAM DUB, press fit
Wheels & Tyres
- Rims: Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
- Hubs: [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
- Spokes: Sapim CX-Ray
- Tires: Maxxis Rambler, 700x45c, tubeless
Other
- Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
- Weight: The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
