Giant Defy Advanced E+ Elite 1 25km/H Raw Carbon E-Bike

Key Performance Factors

SEAMLESS POWER
The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION
The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE
A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Specifications

• Motor: Giant SyncDrive Move Plus, Rear Hub, 30Nm
• Controller: Mode support switch from SRAM blips
• Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
• Battery: EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
• Charger: EnergyPak 4A smart charger compact
• Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
• Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Colours: Raw Carbon

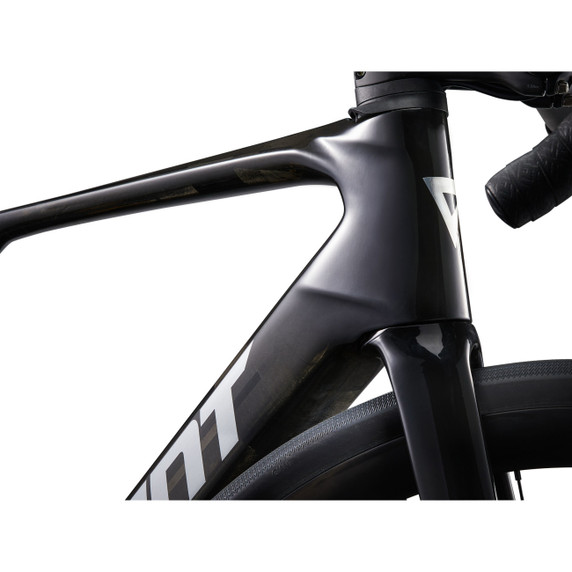

• Frame: Advanced-Grade Composite, disc, 12x145mm
• Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, disc, 12x100mm

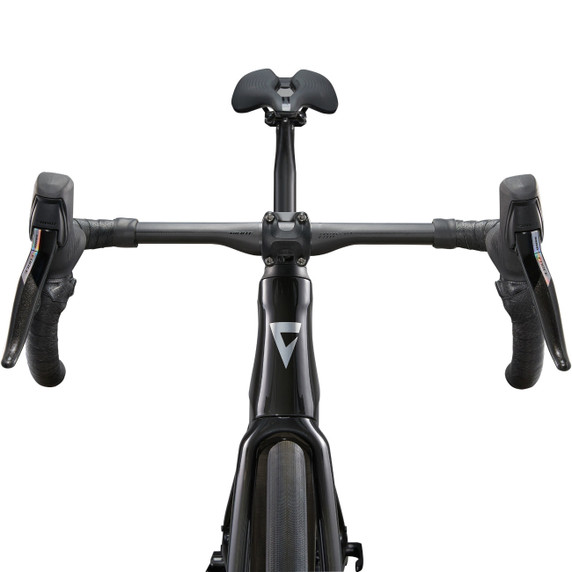

• Handlebar: Giant Contact SLR D-Fuse S:40/42cm, M:42/44cm, M/L:42/44cm, L:44/46cm, XL:44/46cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact SLR AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant D-Fuse SL, composite, -5/+15mm offset
• Saddle: Giant Fleet SL
• Pedals: N/A
• Shifters: SRAM Force AXS
• Front Derailleur: SRAM Force AXS
• Rear Derailleur: SRAM Force AXS
• Brakes: SRAM Force AXS hydraulic, SRAM CenterLine X rotors [F]160mm, [R]160mm
• Brake Levers: SRAM Force AXS hydraulic
• Cassette: SRAM Force XG-1270, 12-speed, 10-33
• Chain: SRAM Force D1

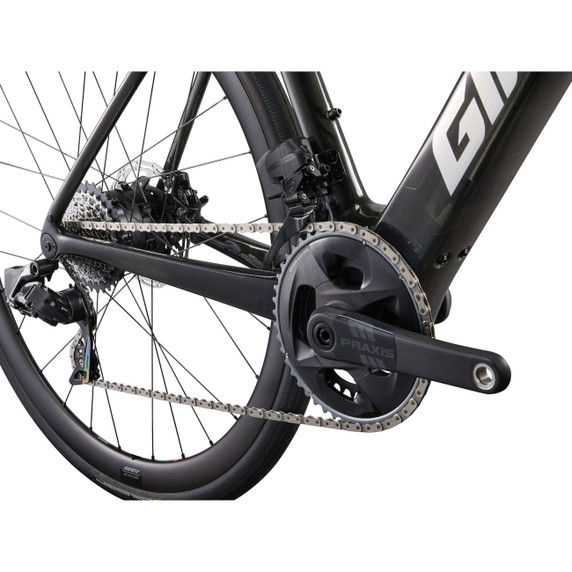

• Crankset: SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: Giant E+ System BBSS
• Rims: Giant SLR 1 E+ 36mm Carbon Disc Wheel System, Hookless, Tubeless Ready
• Hubs: [F] Giant SLR 1, 24H [R] Giant SyncDrive Move Plus, 28H
• Spokes: Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised
• Tyres: CADEX Classics, tubeless, 700x32c, folding
• Lighting: Seatpost clamp integrated tail light
• Max Tyre Clearance: 38mm
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*Please note that specifications may be subject to change due to component availability.
