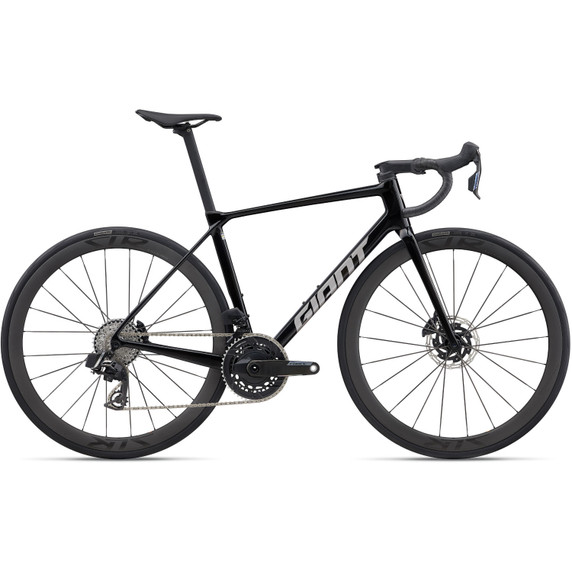

Giant TCR Advanced Pro 0 AXS Carbon

TCR Advanced Pro 0 (AXS)

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.

SYSTEM OPTIMISATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modelling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Features

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
• OverDrive Aero: Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
• PowerCore: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Specifications

• Sizes: XS, S, M, M/L, L, XL
• Colours: Carbon
• Frame: Advanced-grade Composite, 12x142mm thru-axle, disc
• Fork: Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
• Shock: N/A
• Handlebar: Giant Contact SLR XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Fleet SL
• Pedals: N/A
• Shifters: SRAM Force AXS E1
• Front Derailleur: SRAM Force AXS E1
• Rear Derailleur: SRAM Force AXS E1
• Brakes: SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers: SRAM Force AXS
• Cassette: SRAM Force E1, 12-speed, 10x36
• Chain: SRAM Force E1
• Crankset: SRAM Force E1 DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant SLR 0 40 WheelSystem, [F]40mm, [R]40mm
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: Giant Aero Carbon Spoke
• Tires: CADEX Race GC, tubeless, 700x30c (30mm), folding
• Extras: Computer mount, tubeless prepared, 33mm max tyre size
• Max Tire Clearance: 33mm
