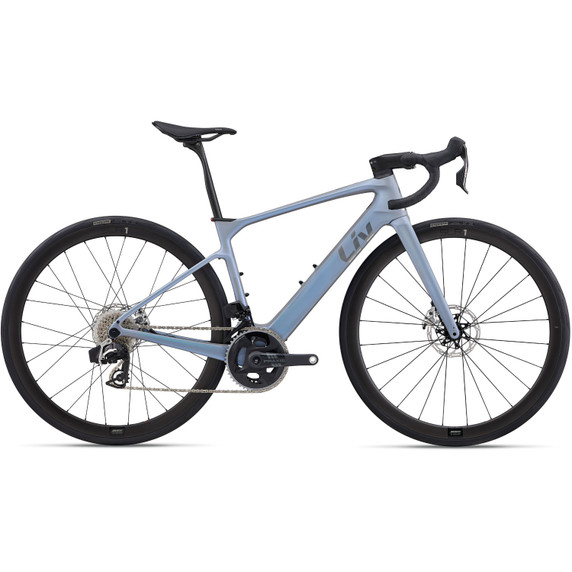

Liv Avail Advanced E+ Elite 0 Moonstone

A Natural Ride

It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

Maximum Miles. Minimum Fatigue.

The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.

Delivering Power & Speed

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25 km/h in Australia.

Features

• Advanced Composite Technology: Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
• RideControl Go: This console features two rows of lights and a power button and is integrated into the top tube to display mode and battery level at a glance. It functions on its own as a minimalist control panel or it can work in tandem with the RideControl Ergo 3, providing an additional way of selecting your support mode.
• SyncDrive Move Plus: The new SyncDrive Move Plus motor delivers 30Nm of torque, which is comparable to 75Nm of torque in a mid-drive motor—all in a lightweight, quiet system that’s fully integrated into the rear hub. It features five support levels plus Smart Assist technology, which can automatically adjust pedaling support without having to change settings while riding. The motor uses sensors to constantly adjust output based on advanced algorithms.
• EnergyPak: Breeze through any ride with a state-of-the-art Liv EnergyPak battery. Our innovations include EnergyPak Smart series, EnergyPak series, and the EnergyPak Plus spare battery to pack along. Safety and efficiency remain our priority to keep you riding safely for long adventures.

Specifications

• Motor: Giant SyncDrive Move Plus, Rear Hub, 30Nm
• Controller: Mode support switch from SRAM bonus button
• Display: Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
• Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
• Charger: Giant EnergyPak 4A smart charger, 60% in 1:45
• Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
• Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
• Sizes: XS, S, M
• Colours: Moonstone
• Frame: Advanced-grade composite,12x145 thru-axle
• Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Shock: -
• Handlebar: Liv Contact SLR D-Fuse XS:38/40cm, S:38/40cm, M:40/42cm
• Stem: Giant Contact SLR AeroLight XS:80mm S:90mm, M:100mm
• Seatpost: Giant D-Fuse SLR, Composite, -5/+15mm offset
• Saddle: Liv Alacra SLR
• Pedals: N/A
• Shifters: SRAM RED AXS HRD, ED-RED-E1
• Front Derailleur: SRAM RED AXS, FD-RED-E-E1
• Rear Derailleur: SRAM RED AXS, RD-RED-E-E1
• Brakes: SRAM RED AXS HRD, ED-RED-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm
• Brake Levers: SRAM RED AXS HRD, ED-RED-E1
• Cassette: SRAM RED XG-1290 10x33T 12-speed
• Chain: SRAM RED E1, 12-speed
• Crankset: SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS, XS:165mm S:165mm, M:170mm
• Bottom Bracket: Giant E+ System BBSS
• Rims: Giant SLR 1 E+ 36mm Carbon Disc Wheel System, Hookless, Tubeless Ready
• Hubs: [F] Giant SLR 1, 24H [R] Giant SyncDrive Move Plus, 28H
• Spokes: Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised
• Tyres: Cadex Race GC, tubeless, 700x30, folding
• Extras: N/A
• Lighting: Seatpost clamp integrated tail light
