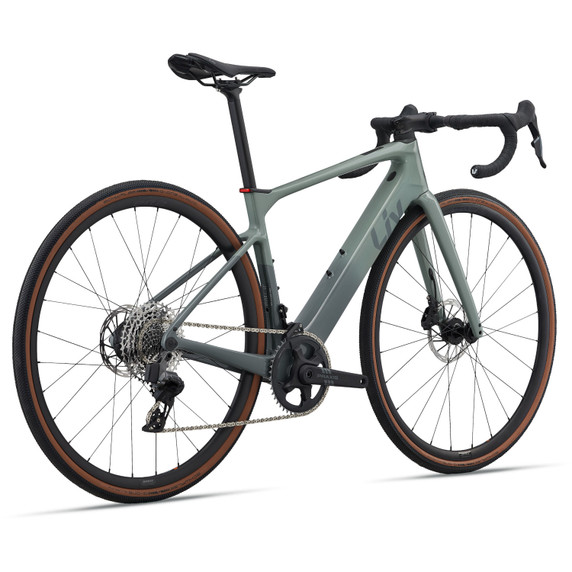

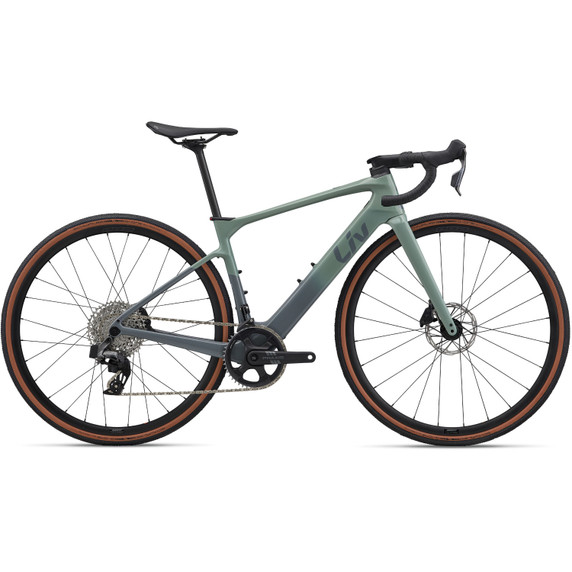

The design of the Avail Advanced E+ Elite AR stealthily conceals its potent electric capabilities.
A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.
A Natural Ride
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
Maximum Miles. Minimum Fatigue.
The Avail Advanced E+ Elite AR provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
Delivering Power & Speed
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25 km/h in Australia.
Features
- Advanced Composite Technology: Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
- RideControl Go: This console features two rows of lights and a power button and is integrated into the top tube to display mode and battery level at a glance. It functions on its own as a minimalist control panel or it can work in tandem with the RideControl Ergo 3, providing an additional way of selecting your support mode.
- SyncDrive Move: The SyncDrive Move literally moves the motor to the rear hub of the bicycle. Found in our youth bike range, this compact motor delivers 30Nm of torque for a smooth, confidence-inspiring ride. It features 3 support modes to help young riders climb with less effort. For kids’ safety the power mode will stay on for only 10 seconds, serving as a fun boost. It also features Smart Assist technology which uses five sensors to determine a smooth and natural pedaling support.
- EnergyPak: Breeze through any ride with a state-of-the-art Liv EnergyPak battery. Our innovations include EnergyPak Smart series, EnergyPak series, and the EnergyPak Plus spare battery to pack along. Safety and efficiency remain our priority to keep you riding safely for long adventures.
Specifications
-
Motor: Giant SyncDrive Move Plus, Rear Hub, 30Nm
-
Controller: Mode support switch from SRAM Blips
-
Display: Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
-
Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
-
Charger: Giant EnergyPak smart charger 4A
-
Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
-
Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
-
Sizes: XS, S, M
-
Colours: Eucalyptus/ Ocean Storm
-
Frame: Advanced-grade composite,12x145 thru-axle
-
Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
-
Shock: -
-
Handlebar: Giant Contact SL D-Fuse XS:38/41cm, S:38/41cm, M:40/43cm
-
Stem: Giant Contact SL AeroLight XS:80mm S:90mm, M:100mm
-
Seatpost: Giant D-Fuse, Composite, 14mm offset
-
Saddle: Liv Approach
-
Pedals: N/A
-
Shifters: SRAM Rival AXS
-
Front Derailleur: n/a
-
Rear Derailleur: SRAM Rival XPLR AXS
-
Brakes: SRAM Rival AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
-
Brake Levers: SRAM Rival AXS hydraulic
-
Cassette: SRAM Rival XPLR XG-1251, 12-speed, 10-44
-
Chain: SRAM Rival
-
Crankset: SRAM X-SYNC 46T BCD107 chain ring Praxis E Crank Alloy ISIS, XS:165 S:165mm, M:170mm
-
Bottom Bracket: Giant E+ System BBSS
-
Rims: Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimized
-
Hubs: [F] Giant Alloy, 24H [R] Giant SyncDrive Move Plus, 28H
-
Spokes: Sapim spoke E-Light [R] Race [F], e-bike optimised
-
Tyres: Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
-
Extras: N/A
-
Lighting: Seatpost clamp integrated tail light
