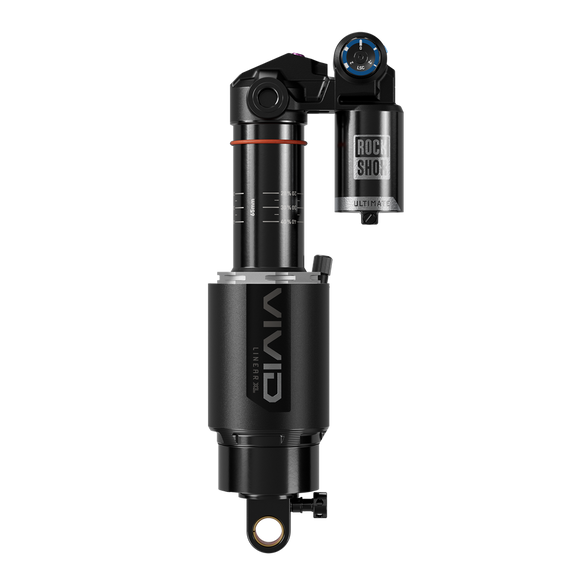

World Cup-proven and built to charge, Vivid Ultimate sets a new standard in downhill performance.
The LinearXL air spring delivers a coil-like feel—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out for confident endstroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2T damper’s new main piston compression tunes provide mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Bigger, more aggressive, and ready to push limits on enduro, E-MTB, and downhill bikes—Vivid Ultimate redefines what a rear shock is capable of.
Features
- NEW LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-change bottomless tokens
- NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
- NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
- NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
- NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
- Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
- Removable Rebound knob doubles as HSC and ABO adjuster
- 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
- 8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
Specifications
- Eye to eye / Stroke: 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x55, 230x57.5, 230x60, 230x62.5, 230x65
- Damper Type: RC2T Adj. Hydraulic Bottom Out
- Rebound tune: R55
- Compression tune: C26, C30, C34, C37, C43
- Lockout force: X25, X45
- Shaft Eyelet: No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 75 Deg Rotation
- Body Eyelet: Standard, Trunnion
- E-Bike Approved: E-bike Approved
- Bottom Out: Externally Adjustable Bottom Out
- High Speed Tune: n/a
