The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs.
Rocky Mountain's most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between.

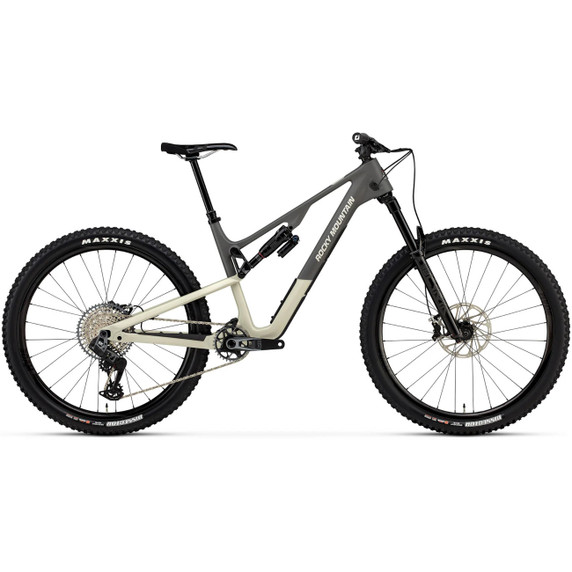

Meet the Instinct Carbon.
- Intended use: Trail
- Rear travel: 140
Features and technologies
- RIDE-4™ adjustment system: The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.
- Reach adjust headsets: Fine tune your ride with center, +/- 5mm offset options.
- PenaltyBox™ 2.0: The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
- Size Specific Tune: Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
- Two-position axle: The two-position axle allows the rider to choose a short or long rear-center length that suits their personal preferences.
- SMOOTHWALL™ Carbon: Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
Specifications
Frame: SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork: RockShox Lyrik Select+ 150mm | Charger RC3 Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
Front Travel: 150
Shock: RockShox Super Deluxe Ultimate | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel: 140
Headset: FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem: Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Handlebar: Rocky Mountain AM Carbon 780mm
Grips: ODI Elite Pro Lock On
Brakes: Sram G2 RSC 4 Piston | Resin Pads
Shifters: Sram AXS Wireless Pod Controller
Rear Derailleur: Sram X0 Transmission Wireless
Cranks & Chainring: Sram X0 Transmission Alloy | 32T | DUB Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm
Bottom Bracket: Sram BB92 DUB Wide
Cassette: Sram GX Transmission 10-52T
Chain: Sram GX Transmission
Front Hub: Rocky Mountain SL Sealed Boost 15mm
Rear Hub: DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes: DT Swiss Competition 2.0/1.8/2.0
Rims: Rocky Mountain 30AM Carbon / Tubeless Ready - Tape / Valves Incl
Tires: F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready //
Seatpost: OneUp Dropper 30.9mm | XS = 120mm | SM = 150mm | MD = 180mm | LG - XL = 210mm
Saddle: WTB Volt Race 142
Weight: 30 LBS|13.6 KGS
Rocky Mountain make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
Sizing
- XS: 147.5 - 157.5 cm / 4’7” - 52”
- SM: 152.5 - 167 cm / 5’0” - 5’6”
- MD: 162.5 - 177.5 cm / 5’4” - 5’10”
- LG: 172.5 - 188 cm / 5’8” - 6’2”
- XL: 183 - 198 cm / 6’0” - 6’6”
