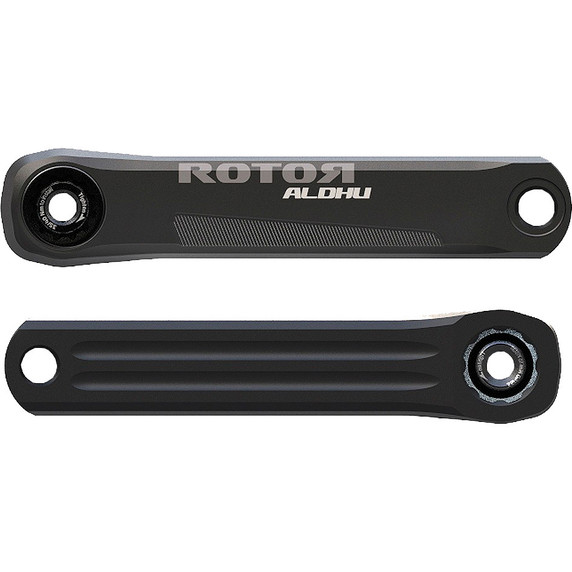

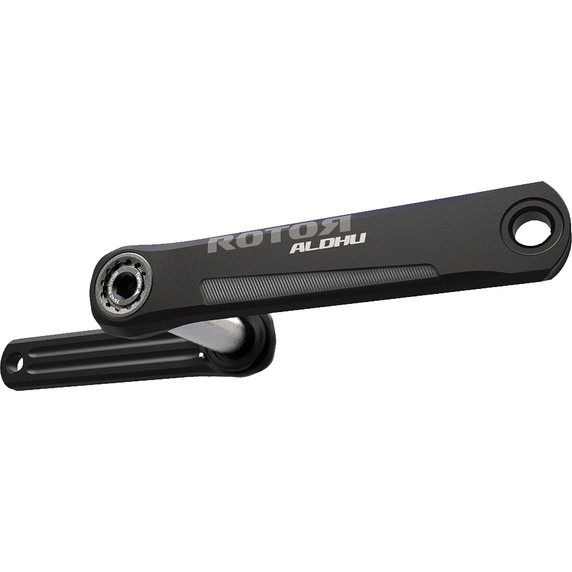

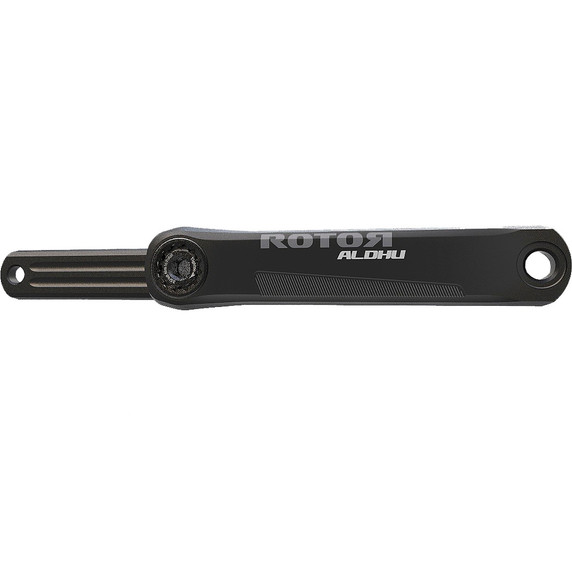

The ALDHU24 incorporates OCP Mount technology, which enables the rider to fine-tune the orientation of ROTOR's oval Q RINGS.
The ALDHU proprietary, patent-pending design is based on the modularity of each crankset component. The innovative modular structure, together with axles and different chainring options, makes each component individually available to accommodate the current spectrum of riders and bike standards.
Features:
• Weight: 355 g (170mm w/o chainrings & axle)
• Q-Factor: 148 mm
• Chainline (2X): 43.5 mm (standard spindle)
• Chainline (1X): 44.5 mm (standard spindle) | 47 mm (offset spindle)a
• Material: 7055 aluminium
• Compatibility: BSA30, ITA30, BB30 bearing kit, PRESS FIT 4630, UBB4630, BB386, PRESS FIT 4130
