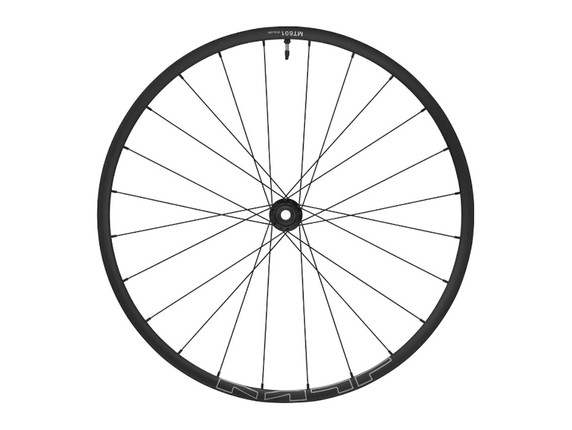

Shimano WH-MT601 wheels bring robust performance to any trail.
The aluminum tubeless rims feature double butted, J-bend spokes that are laced to Center Lock hubs and deliver fast acceleration for more fun on the trail.
Technologies
- Center Lock -makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
- MicroSpline - Delivers lightweight aluminum FreeHub body to reduce weight and 10 teeth top gear.
- Use combination with MicroSpline cassette sprocket and FreeHub.
- * Micro Spline patents are pending
Specifications
| 100X15mm | 100X15mm/Boost | 142x12mm | |
|---|---|---|---|
| Average Weight | 884g | 888g | 1189g |
| Spokes | J-Bend | J-Bend | J-Bend |
| Brake Type | Center Lock Disc | Center Lock Disc | Center Lock Disc |
| Axle Fixing Method | 15mm E-Thru | 15mm E-Thru | 12mm E-Thru |
| Quick engagement | - | - | X (36 times/ 360 deg.) |
| Thru Axle(Length x Inner diameter) | 100 x 15mm | 110 x 15mm | - |
| O.L.D. | 100mm | 110mm | 142mm |
| Bearing | Cone: CBN | Cone: CBN | - |
| Brake Type | Center Lock Disc | Center Lock Disc | Center Lock Disc |
| Front/Rear | Front | Front | Rear |
| Rim | Height: 20.8mm Requires Rim Tape:X (25 - 584) Rim Joint: Sleeve Width: 29.7mm |
Height: 20.8mm Requires Rim Tape:X (25 - 584) Rim Joint: Sleeve Width: 29.7mm |
Height: 20.8mm Requires Rim Tape:X (25 - 584) Rim Joint: Sleeve Width: 29.7mm |
| Seal | Hub:Labyrinth & Contact | Hub:Labyrinth & Contact | Freehub Body: Contact |
| Speeds | - | - | 12 |
| Spokes | Butted: 2 Number: 24 |
Butted: 2 Number: 24 |
Butted: 2 Number: 24 |
| Tyre | Recommended Size:27.5 x 2.00 - 2.4 Type:Tubeless |
Recommended Size:27.5 x 2.00 - 2.4 Type:Tubeless |
Recommended Size:27.5 x 2.00 - 2.4 Type:Tubeless |
| Wheel Size | 584 x 25C (650B=27.5 inch) | 584 x 25C (650B=27.5 inch) | 584 x 25C (650B=27.5 inch) |
| Ratchet system type | - | - | Pawl ratchet |
