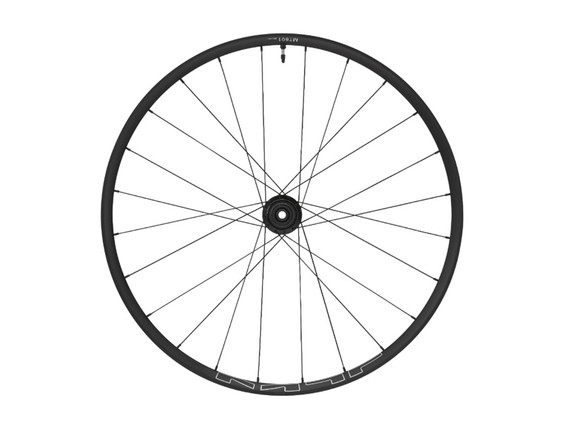

Shimano WH-MT601 wheels bring robust performance to any trail.
The aluminum tubeless rims feature double butted, J-bend spokes that are laced to Center Lock hubs and deliver fast acceleration for more fun on the trail.
Technologies
- Center Lock - Makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
- Micro Spline -Micro Spline delivers lightweight aluminum Freehub body to reduce weight and 10 teeth top gear.
- Use combination with Micro Splinecassette sprocket and Freehub.
- Lightweight aluminum Micro Spline Freehub seamlessly integrates with small 10-tooth top gears.
- Smaller and more widely distributed splines limit cog damage on lightweight aluminum Freehub.
Specifications
| 142x12mm | 110x15mm/Boost | 100X15mm | |
|---|---|---|---|
| Average Weight | 1238g | - | 931g |
| Spokes | J-Bend | J-Bend | J-Bend |
| Brake Type | Center Lock Disc | Center Lock Disc | Center Lock Disc |
| Axle fixing method | 12 mm E-THRU | 15 mm E-THRU | 15 mm E-THRU |
| Rear Speeds | 12 | - | - |
| O.L.D. | 142mm | 110mm | 100m |
| Front/Rear | Rear | Front | Front |
| Rim | Height: 20.8mm Rim Joint: Sleeve Width: 28.8mm Internal Width: 25mm |
Height: 20.8mm Rim Joint: Sleeve Width: 28.8mm Internal Width: 25mm |
Height: 20.8mm Rim Joint: Sleeve Width: 28.8mm Internal Width: 25mm |
| Seal | Hub:Labyrinth & Contact Freehub: Contact |
Hub: Labyrinth & Contact | Hub: Labyrinth & Contact |
| Spokes | Butted: 2.3mm Diameter Number: 24 |
Butted: 2.3mm DiameterNumber: 24 | Butted: 2.3mm DiameterNumber: 24 |
| Tyre | Recommended size:29 x 2.00 - 2.40 Type: Clincher |
Recommended size:29 x 2.00 - 2.40 Type: Clincher |
Recommended size:29 x 2.00 - 2.40 Type: Clincher |
| Wheel Size | 622 x 24C (29 inch) | 622 x 24C (29 inch) | 622 x 24C (29 inch) |
