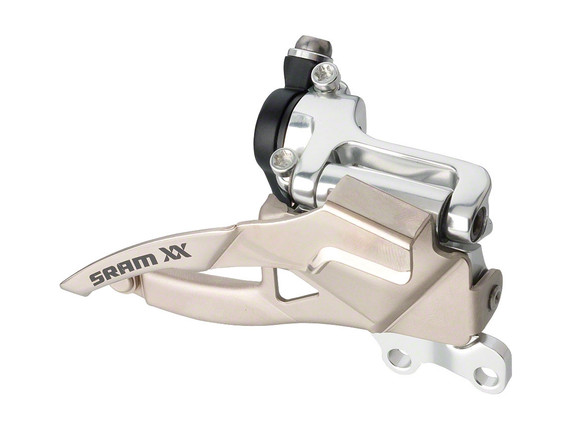

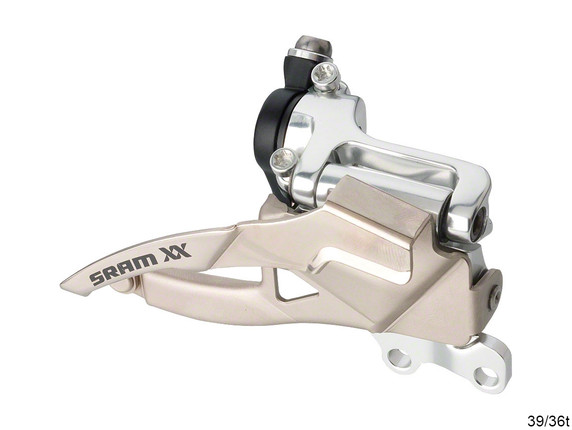

Specific to SRAM's XX 2x10-speed mountain drivetrain to offer super-fast/smooth shifting and a full range access while in big ring with no chain rub.
Features
Low-clamp/top-swing (TS), high-clamp/down-swing (DS), or direct-mount (DM) fitment options
Clamp options available to fit 31.8/34.9/38.2mm seat tubes (separate shim needed for 28.6mm seat tubes) and designed for 66-69 degree chainstay/seat-tube angles
Direct-mount options are chainring size/combination specific and available in three versions: S1 for 42.7mm or S3 for 22.1mm mounts
Dedicated design for top-pull or bottom-pull cable routing
Specifications
| Speeds | 10 Speeds |
|---|---|
| Crank Rings | Double |
| Max Chainring Clearance | 39 Teeth, 42 Teeth |
| Cable Pull | Top |
| Clamp | 39/36T: E2 Direct Mount 42/28T: S3 Direct Mount |
| Style | Topswing |
| Mount | 39/36T: E2 (DM) 42/28T: S3 (DM) |
| Speed | 2 x 10 |
| Clamp/Rings | 39/36t, 42/28t |
| Capacity | 39/36T: 13T 42/28T: 14T |
| Max | 42T |
| Colour | Silver |
