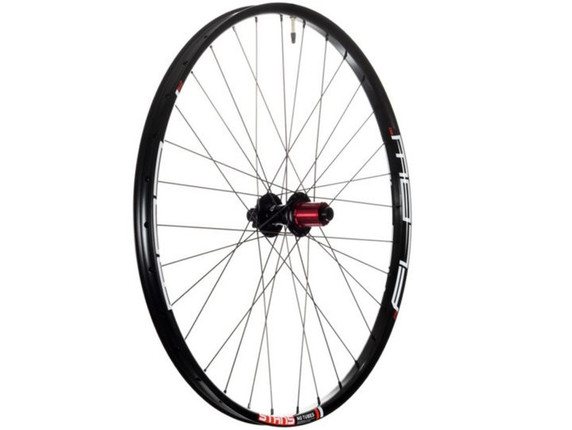

Stan's NoTubes Arch MK3 27.5" 6 Bolt Rear Wheel


$409.99
Choose Options:
Clear Selection

Product Barcode

×
Stock Availability
National Delivery

Select an Option

Brisbane Store
In Store & Click'n'Collect
Canberra Store
In Store Only
Fast Shipping Shipping Calculated at Cart
Price Match Contact Us Here
Easy Returns Info Here
Payment Options Interest FREE Options Over $30
Pushys ID 200032
Product ID 200032


Designed with input from their Enduro World Series teams, the new Arch MK3 is ready to own every trail.

WideRight optimized for maximum stability with 2.25? to 2.5? tyres, theyexpanded the internal width out to 26mm while keeping the rim incredibly light. A new proprietary alloy and stronger, low-profile rim shape means the new Arch MK3 is built to last. Featuring Bead Socket Technology, the new Arch MK3 also offers the unmatched traction, control, and reliability only found on genuine Stan's NoTubes rims.

Features

  • Tubeless ready with rim tape and valves installed
  • The perfect balance of strength and weight
  • 24% wider than the Arch EX for improved stability with larger tyres
  • Same light weight as the Arch EX
  • Low-profile shape rolls faster, lasts longer, and helps stop tyre pinch flats
  • 25% stiffer and stronger for improved handling
  • Lighter and more durable rim shape and alloy
  • Neo hubs accelerate quicker and last longer
  • Most trusted tubeless system for easy setup and low maintenance
  • Sapim Secure Lock aluminum nipples
  • Available for SRAM XD and Shimano HG cassettes
  • Available for all current axle systems, including Cannondale Lefty SL, Lefty Supermax, SRAM Predictive Steering, and Boost 110mm and 148mm spacing
  • WideRight optimized for 2.25"-2.50" Trail tyres

Specifications

Rim Internal Width 26.0mm
Rim External Width 29.3mm
Rim Depth 16.0mm
Spokes Sapim Force Black 2.0/1.7/1.8mm
Nipples Sapim Secure Lock Alloy Black
Hub Neo with Durasync
Hole Count 32-hole, 32-hole
Rim Material 6069 Aluminum Alloy
Rim Color Black
Hub Color Black
Brakes Disc Only
Valve 35mm Presta
Rim Weight 406g (26?) / 425g (27.5?) / 453g (29?)
Wheelset Weight 1633g (26") / 1684g (27.5?) / 1757g (29?)
Front Wheel Weight 756g (26?) / 781g (27.5?) / 818g (29?)
Rear Wheel Weight 877g (26?) / 903g (27.5?) / 939g (29?)
ERD 542mm (26?) / 567mm (27.5?) / 605mm (29?)
ETRTO 55926.0 (26?) / 58426.0 (27.5?) / 62226.0 (29?)
ISO 26?x29.3mm / 27.5?x29.3mm / 29?x29.3mm
Tape 27mm
Max Spoke Tension 125kgf (1225N)
Max Pressure with 2.4? Tyre 39psi
Max Pressure with 2.8? Tyre 36psi
Max Rider Weight 230lbs (104 kilo)
