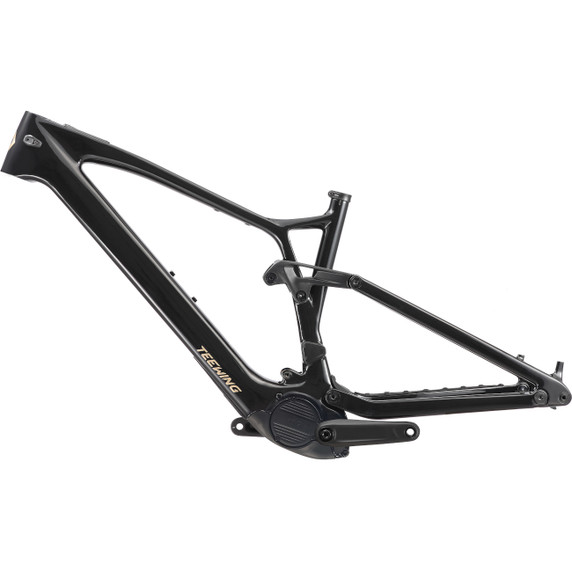

Teewing Turbo Force Frameset Cosmic Black



TThe Teewing Turbo Force integrates the cutting-edge DJI Avinox Drive System to deliver an industry-leading ebike. Built around a proprietary, ultra-stiff carbon frame, the Turbo Force offers exceptional power-to-weight ratios and dynamic handling. Equipped with a high-capacity 800Wh battery and advanced fast-charging, it is engineered for riders who demand endurance without compromising on design.



• FOX Float X Rear Shock: the reliable FOX Suspension answers the demands of the modern trail rider; a firm pedal platform for uphill efficiency and confidence-inducing, trail-hugging descent capability, all in a lightweight package.
• Enhanced Frame Stiffness: carbon-fibre frame with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.
• Avinox Motor: equipped with the latest Avinox Drive Unit. The Avinox Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customise their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.
• Smart Touchscreen Control: 2-inch OLED touchscreen with automatic brightness, offering a customisable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.
• Advanced Four-Bar Linkage: advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.

Specifications

• Frame
  • Teewing Turbo Force Carbon Fibre Frame
  • 150mm rear travel
  • 29”
  • Cosmic Black or Cosmic Blue
• E-Bike System
  • Avinox Drive Unit
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Integrated Battery: 800Wh
  • Avinox Wireless Controllers
  • Avinox Fast Charger: 12A/508W
  • 6 Bolt Hub Speed Sensor
• Rear Suspension
  • FOX Float X
  • Kashima
  • LV EVOL
  • Trunnion 185x55mm
• Includes
  • FOX Float X Rear Shock
  • Headset 44/56mm
  • Seat Post Clamp
  • Chain Guide
  • Chainstay Protector
  • Thru Axle 148mm
  • Crankset 155mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Note: The Turbo Force Frameset does not come with a chainring.

This bike will be shipped in the manufacturer supplied packaging. We recommend that this bike be assembled by a qualified bike mechanic or bike shop. Any subsequent damage from faulty assembly is at the customers risk.
