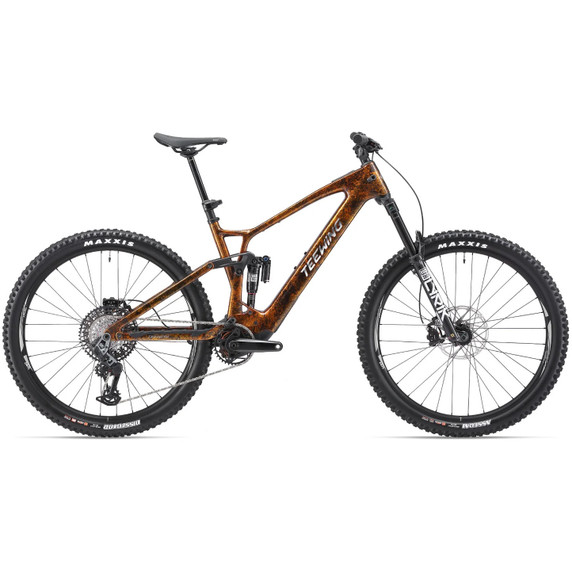

Teewing Turbo Force PRO Brown

Unleash the Power in Every Trail

Teewing Turbo Force Pro takes E-MTB to the next level with a powerful Avinox motor that delivers 105Nm of torque in a compact, high-performance package. Built on a lightweight yet stiff carbon frame, it offers agility and precision for a lively and responsive ride.

The bike features wireless shifting with SRAM AXS T-Type Transmission, and a smooth suspension setup with a RockShox Lyrik Ultimate and Rockshox Super Deluxe Ultimate.

Whether you're climbing or descending, the Turbo Force Pro delivers unmatched performance on any trail.

Features

• Teewing Turbo Force Pro: delivering 850W peak power and 105 Nm torque in a full carbon frame. Lightweight, powerful, and smart—built to conquer any trail with confidence and control.

• Enhanced Frame Stiffness: carbon-fibre frame crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

• Avinox M1 Motor: ​equipped with the Avinox M1 Drive Unit, a compact motor weighing approximately 2.52kg. Despite its lightweight design, it delivers a continuous torque of 105Nm, providing robust power to tackle diverse terrains with ease. The M1 Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customize their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.

• Lightweight, High-Capacity Battery: equipped with Avonix's 800Wh battery, weighing approximately 3.74kg. This lightweight, high-capacity battery offers an impressive range of up to 157km, enabling riders to embark on extended adventures with confidence.

• Smart Touchscreen Control: 2-inch OLED touchscreen with automatic brightness, offering a customisable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.

• 12A Fast Charger: utilising the GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.

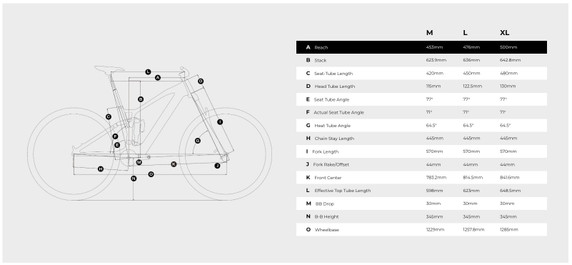

• Optimised Frame Geometry: ​meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

• Advanced Four-Bar Linkage: advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.

Specifications

• Frame
  • Teewing Turbo Force Carbon Frame
  • Impasto Brown
  • 29" rear wheels
  • 150mm rear travel
• E-Bike System

  • Avinox M1 Drive Unit: 105Nm
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Integrated Battery: 800Wh
  • Avinox Wireless Controllers: Right and left sides
  • Avinox Fast Charger: 12A/508W
• Rear Shock

  • Rockshox Super Deluxe Ultimate, 150mm
  • Trunnion, 185mm×55mm, Linear Air Can
• Fork
  • Rockshox Lyrik Ultimate, 160mm
  • 29" Boost, 15X110mm, 44mm rake
• Drivetrain
  • Rear Derailleur: SRAM 12spd GX Eagle Transmission Derailleur
  • Chainring: SRAM 36T 12spd Eagle Transmission E-MTB, 104 BCD
  • Shift Levers: SRAM AXS Pod
  • Cassette: SRAM 12spd CS XS 1275 T-TYPE 10-52T
  • Chain: SRAM 12spd CN GX T-TYPE
  • Crankset: Avinox SL Crank 160mm
• Brakes

  • SRAM Maven Silver 4-piston
  • SRAM Centreline Rotors, 200mm
• Breo-X7701E Wheels

  • Alloy  29'', 30mm , 32H, Tubeless Ready
  • Spokes: SAPIM E-Light J-bend
  • Front Hub: 15×110mm thru-axle, 6-bolt, 32H, sealed bearings
  • Rear Hub: 148×12mm thru-axle, 6-bolt, 32H, sealed bearings
• Tyres

  • Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO+ E-25 TLR
  • Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
• Handlebar

  • Teewing Enduro Carbon Handlebar
  • 20mm rise, 800mm wide
  • 5-degree upsweep, 8-degree backsweep
• Grips
  • VELO Enduro Grips
• Stem
  • Teewing Enduro 7075 CNC
  • Length: 40mm
  • Clamping diameter: 35mm
• Saddle
  • Selle Royal SRX Plus
• Dropper Seatpost
  • RockShox Reverb AXS 31.6
  • Travel: 150mm (MD), 175mm (LG), 200mm (XL)
• Accessories
  • User Manual
  • Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
  • Shock Pump
• Net Weight
  • 21.5kgs

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

This bike will be shipped un-built in the manufacturer supplied packaging. We strongly recommend that this bike be assembled by a qualified bike mechanic or bike shop.

Any assembly undertaken without professional assistance, and subsequent damage from faulty assembly, is at the customers risk.
