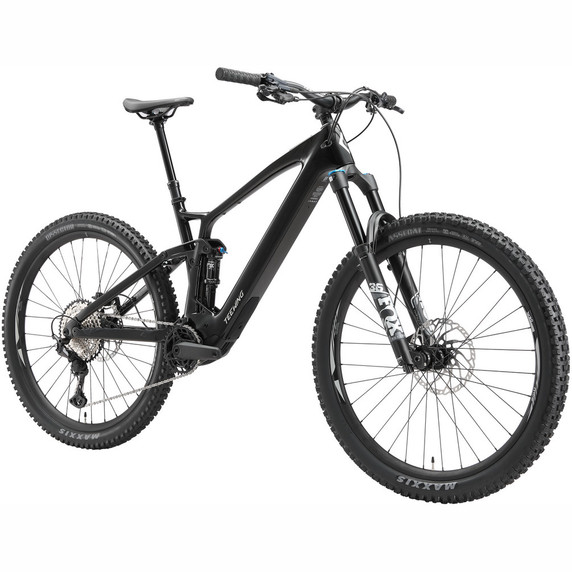

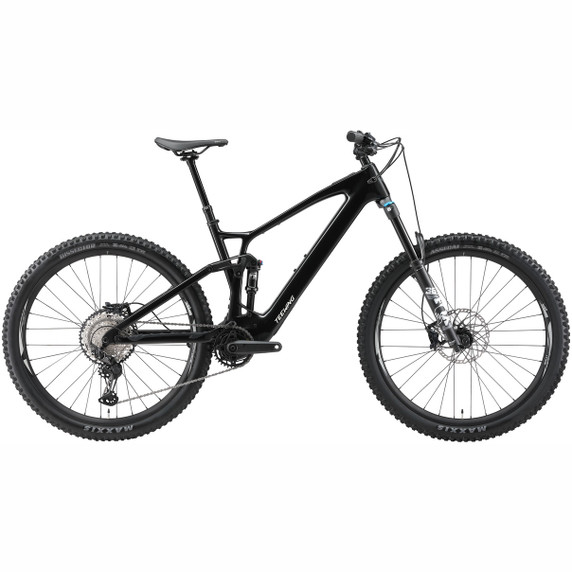

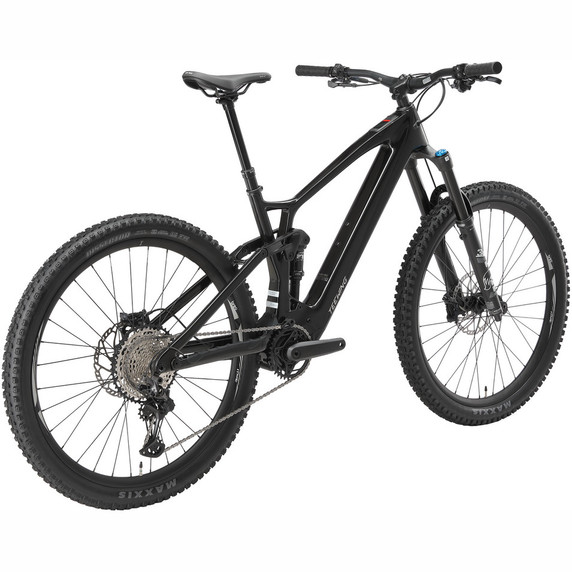

Teewing Turbo Force XT Black Launch Edition

Unleash the Power in Every Trail

Teewing Turbo Force XT takes a bold step forward in E-MTB with the Avinox motor, delivering 105Nm of torque in a compact, powerful design. Built on a lightweight carbon frame, it’s stiff and agile, offering a responsive ride on any trail.

To enhance the experience, it’s equipped with Shimano XT M8100 12-speed shifting for precise gear changes, and a smooth suspension setup with a Fox 36 Rhythm and Fox Float Performance. With a high-capacity 800Wh battery, the Turbo Force XT keeps you powered up and ready for adventure.

Features

• Teewing Turbo Force XT: delivering 850W peak power and 105Nm torque in a full carbon frame. Lightweight, powerful, and smart—built to conquer any trail with confidence and control.

• Enhanced Frame Stiffness: carbon-fibre frame with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

• Avinox M1 Motor: ​equipped with the Avinox M1 Drive Unit, a compact motor weighing approximately 2.52kg. Despite its lightweight design, it delivers a continuous torque of 105Nm, providing robust power to tackle diverse terrains with ease. The M1 Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customise their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.

• Lightweight, High-Capacity Battery: powered by Avinox's 800Wh battery, weighing approximately 3.74kg, this lightweight, high-capacity battery offers an impressive range of up to 157km, enabling riders to embark on extended adventures with confidence.

• Smart Touchscreen Control: 2-inch OLED touchscreen with automatic brightness, offering a customisable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.

• 12A Fast Charger: utilising the GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.

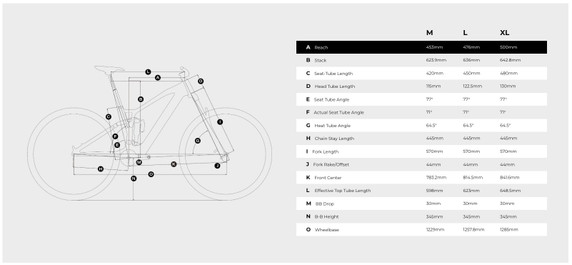

• Optimised Frame Geometry: ​meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

• Advanced Four-Bar Linkage: advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.

Specifications

• Frame

  • Teewing Turbo Force Carbon Frame
  • Cosmic Black
  • 29" rear wheels
  • 150mm rear travel
• E-Bike System

  • Avinox M1 Drive Unit: 105Nm
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Integrated Battery: 800Wh
  • Avinox Wireless Controllers: Right and left sides
  • Avinox Fast Charger: 12A/508W
• Rear Shock

  • FOX Float Performance, 150mm
  • Trunnion, 185mm×55mm, Linear Air Can
• Fork

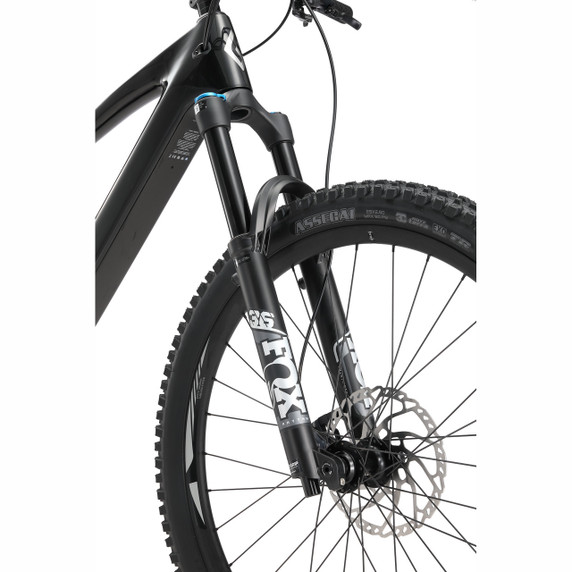

  • FOX Rhythm 36, 160mm
  • 29" Boost, 15X110mm
• Drivetrain

  • Rear Derailleur: Shimano 12spd XT M8100
  • Chainring: Prowheel 36T 104BCD
  • Shift Levers: Shimano 12spd XT M8100
  • Cassette: Shimano 12spd SLX M7100, 10-51T
  • Chain: Shimano 12spd SLX CN-M7100
  • Crankset: Avinox SL Crank 160mm
• Brakes

  • Shimano SLX M7120 4-piston
  • Shimano RT66, 6-bolt, 203mm
• Breo-X1701E Wheels

  • Alloy, 29'', 30mm, 32H, Tubeless Ready
  • Spokes: SAPIM E-Light J-bend
  • Front Hub: 15×110mm thru-axle, 6-bolt, 32H, sealed bearings
  • Rear Hub: 148×12mm thru-axle, 6-bolt, 32H, sealed bearings
• Tyres

  • Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO+ E-25 TLR
  • Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
• Handlebar

  • Teewing Enduro AL7075-T6 Handlebar
  • 35mm rise, 800mm wide
  • 8-degree upsweep, 8-degree backsweep
• Grips

  • VELO Enduro Grips
• Stem

  • Teewing Enduro AL6061-T6
  • Length: 40mm
  • Clamping diameter: 35mm
• Saddle

  • Selle Royal SRX Plus
• Dropper Seatpost

  • Diameter: 31.6
  • Travel: 150mm (MD), 170mm (LG), 190mm (XL)
• Accessories

  • User Manual
  • Torque Wrench (3~25 Nm, Hex 2/3/4/5/6mm, Torx® 25)
  • Shock Pump
• Net Weight
  • 21.8kgs

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

This bike will be shipped in the manufacturer supplied packaging. We recommend that this bike be assembled by a qualified bike mechanic or bike shop. Any subsequent damage from faulty assembly is at the customers risk.
