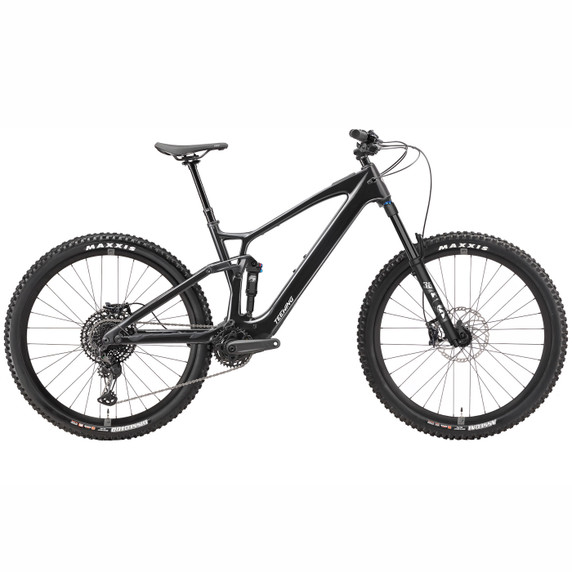

Teewing Turbo Force XT Cosmic Black

Unleash the Power in Every Trail

Teewing Turbo Force XT takes a bold step forward in E-MTB with the Avinox motor, delivering 105Nm of torque in a compact, powerful design. Built on a lightweight carbon frame, it’s stiff and agile, offering a responsive ride on any trail.

To enhance the experience, it’s equipped with Shimano XT M8100 12-speed shifting for precise gear changes, and a smooth suspension setup with a Fox 36 Rhythm and Fox Float Rhythm. With a high-capacity battery, the Turbo Force XT keeps you powered up and ready for adventure.

Features

• Enhanced Frame Stiffness: carbon-fibre frame with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.
• Avinox Motor: equipped with the latest Avinox Drive Unit. The Avinox Drive Unit offers multiple assist modes, including Auto, Eco, Trail, Turbo, and Boost, allowing riders to customise their riding experience. This integration enhances the Teewing Turbo Force's performance, offering riders a seamless and powerful experience across challenging landscapes.
• Lightweight, High-Capacity Battery: powered by Avinox's 600Wh (Small), 800Wh (Medium, Large, Extra Large), weighing approximately 3.74kg, this lightweight, high-capacity battery offers an impressive range of up to 157km, enabling riders to embark on extended adventures with confidence.
• Smart Touchscreen Control: 2-inch OLED touchscreen with automatic brightness, offering a customisable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.
• 4A Charger: the Avinox 4A Charger offers portable fast charging with 168 watts of power, capable of replenishing battery levels at any time. It is well-suited for both daily use and long-distance rides. Can be placed in the frame bag, lightweight and portable.

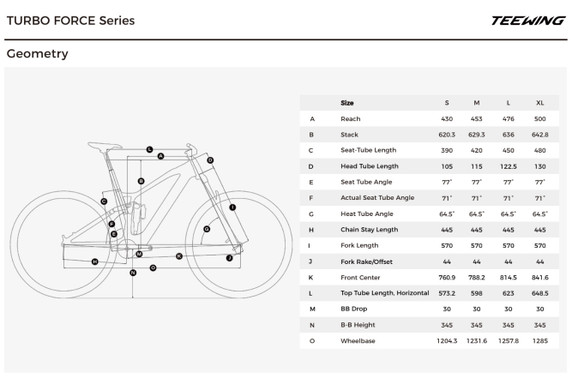

• Optimised Frame Geometry: meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.
• Advanced Four-Bar Linkage: advanced four-bar linkage system offers superior shock absorption, maintaining suspension activity during braking to enhance traction and control across diverse terrains.

Specifications

• Frame
  • Teewing Turbo Force Carbon Frame
  • Cosmic Black or Cosmic Blue
  • 29"
  • 150mm rear travel
• E-Bike System
  • Avinox Drive Unit
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Integrated Battery: 600Wh (Small), 800Wh (Medium, Large, Extra Large)
  • Avinox Wireless Controllers
  • Avinox Charger: 4A/168W
• Rear Shock
  • FOX Float Rhythm
  • LV EVOL
  • Trunnion
  • 185x55mm
• Fork
  • FOX 36 Rhythm
  • 29”
  • 160mm Travel
  • Grip
  • 44mm Rake
  • Matte Black
• Transmission
  • Rear Derailleur: Shimano XT M8100 12spd
  • Chainring: Prowheel 104 BCD 36T
  • Shift Levers: Shimano XT M8100 12spd
  • Cassette: Shimano SLX M7100, 10-51T 12spd
  • Chain: Shimano SLX CN-M7100 12spd
  • Crankset: Teewing SL Crank 155mm
• Brakes
  • Shimano BR-M7120
  • Shimano RT66 203mm
• Wheels
  • Formula M7
  • Rim: Alloy, Tubeless Ready, 29"
  • Spokes: SAPIM E-Light
  • Hubs: 6-Bolt Alloy, Sealed Bearings, 15x110mm, 12x148mm
• Tyre
  • Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
  • Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
• Handlebar
  • Teewing Enduro Alloy Handlebar
  • 40mm rise
  • 800mm wide
  • 5° upsweep
  • 8° backsweep
  • Black
• Grips
  • VELO Enduro Grips
• Stem
  • Teewing Enduro Alloy 6061
  • Length: 40mm
  • Clamp: 35mm
  • Black
• Saddle
  • Selle Royal SRX Plus
• Seatpost
  • EXA Dropper Black 31.6mm
  • S/M: 150mm
  • L: 170mm
  • XL: 190mm
• Accessories
  • User Manual
  • Torque Wrench (3-25nm, Hex 2/3/4/5/6mm, Torx® 25)
  • Shock Pump
• Weight
  • 21.8kgs*

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Note: Teewing Turbo Force XT SMALL ETA is June 2026

This bike will be shipped in the manufacturer supplied packaging. We recommend that this bike be assembled by a qualified bike mechanic or bike shop. Any subsequent damage from faulty assembly is at the customers risk.
